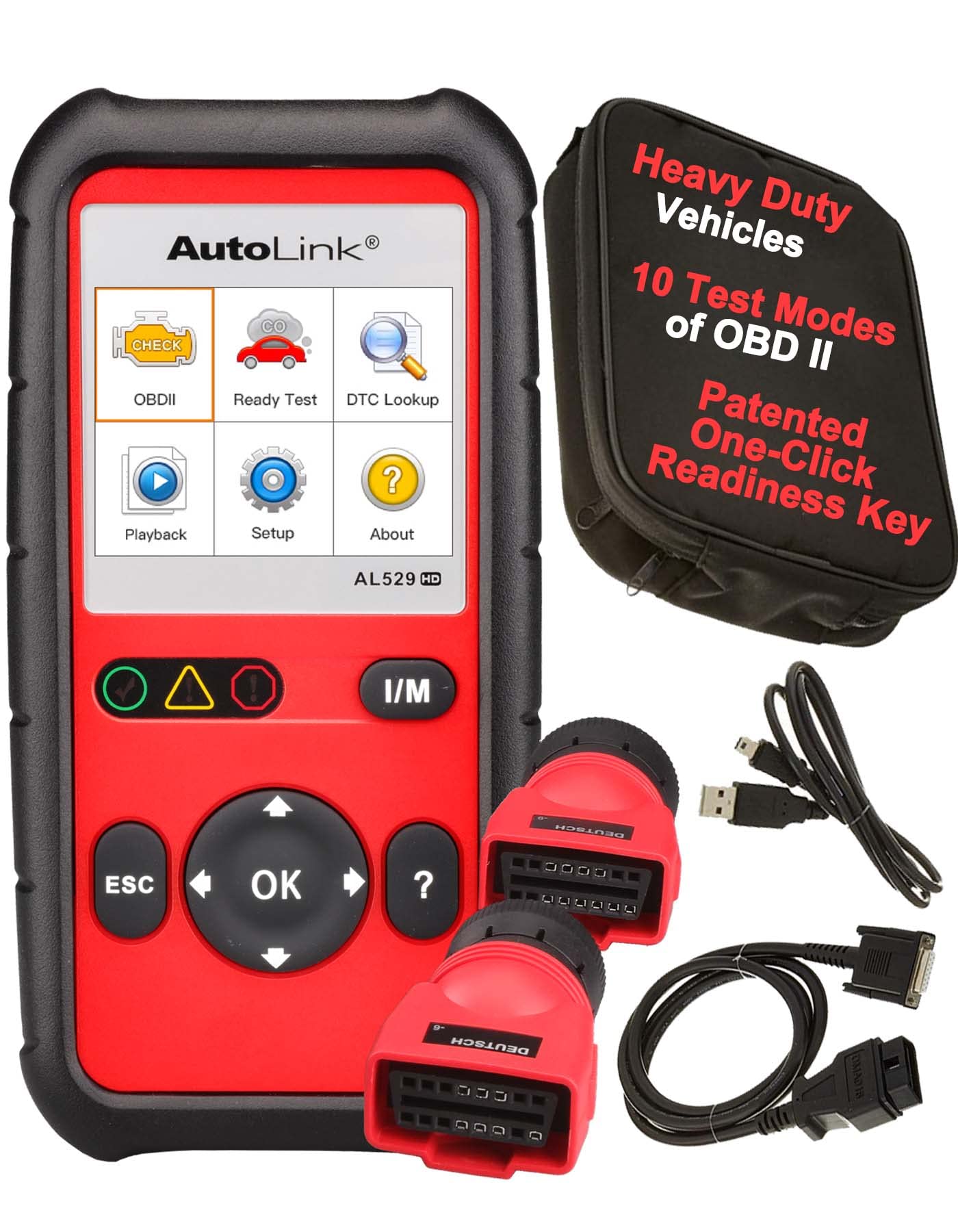

Autel AutoLink AL529HD Heavy Duty OBD2 Scanner with VIN & Live Data

The Autel AutoLink AL529HD is a versatile heavy duty OBD2 scanner designed for both heavy-duty trucks and standard OBDII/EOBD vehicles. Supporting SAE-J1939 and SAE-J1708 protocols, it provides comprehensive diagnostics including code reading, live data viewing, freeze frame data, and O2 sensor testing.

Heavy Duty & OBDII Vehicle Coverage

• Compatible with domestic, Asian, and European heavy duty vehicles from 1996 onwards using SAE-J1939 and SAE-J1708 protocols.
• Supports all standard OBDII/EOBD vehicles with ISO9141, ISO14230, ISO15765, SAE-J1850 PWM, and SAE-J1850 VPW protocols.
• Note: This scanner is not universal. Please send your VIN to [email protected] to confirm compatibility before purchase.

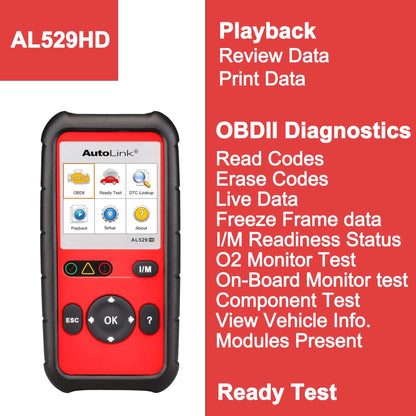

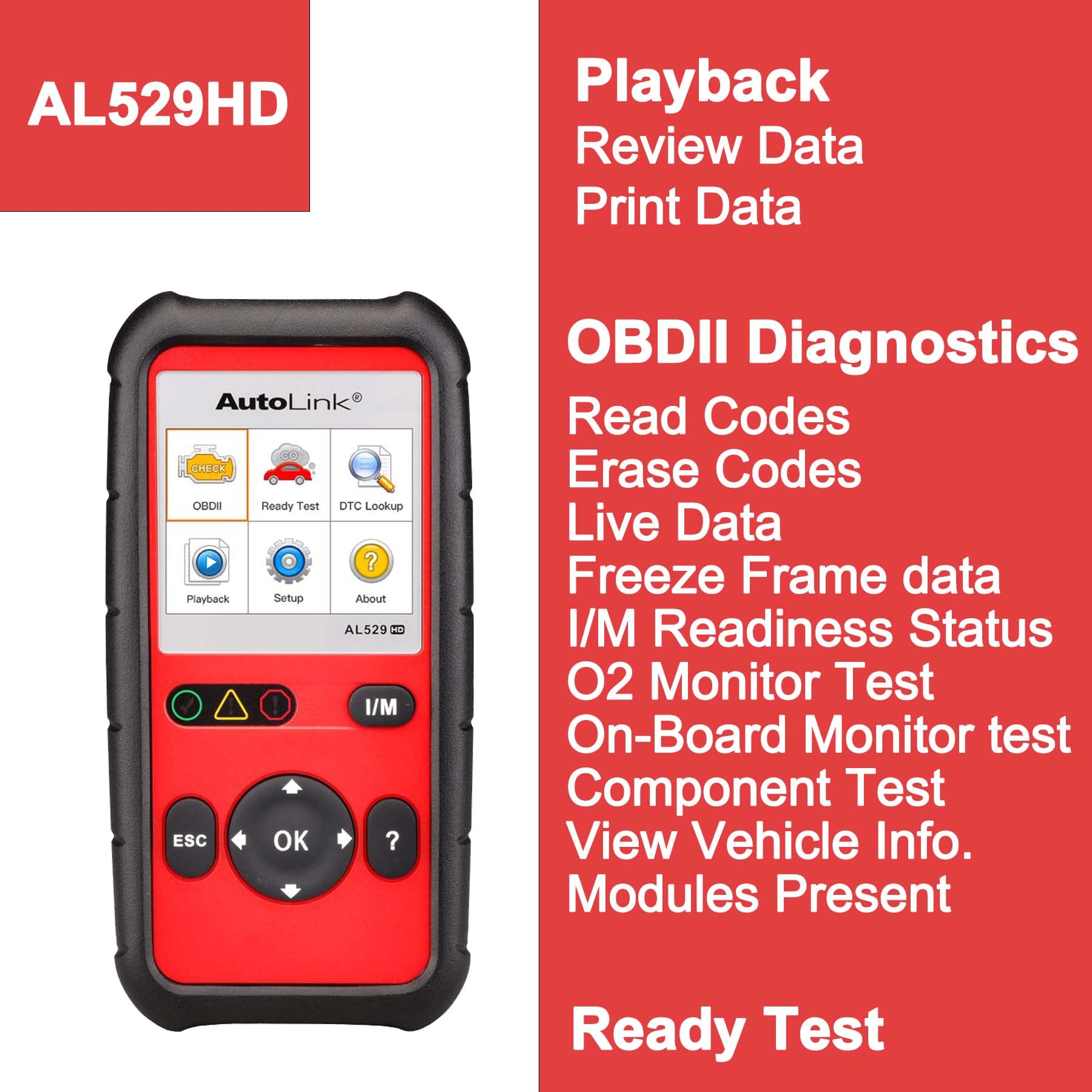

Powerful Diagnostic Functions

• Reads and erases generic (P0, P2, P3, U0), manufacturer-specific (P1, P3, U1), and pending trouble codes.
• Displays live sensor data and freeze frame data for precise diagnostics.
• Enhanced Powertrain system code reading for Ford, GM, and Chrysler models.

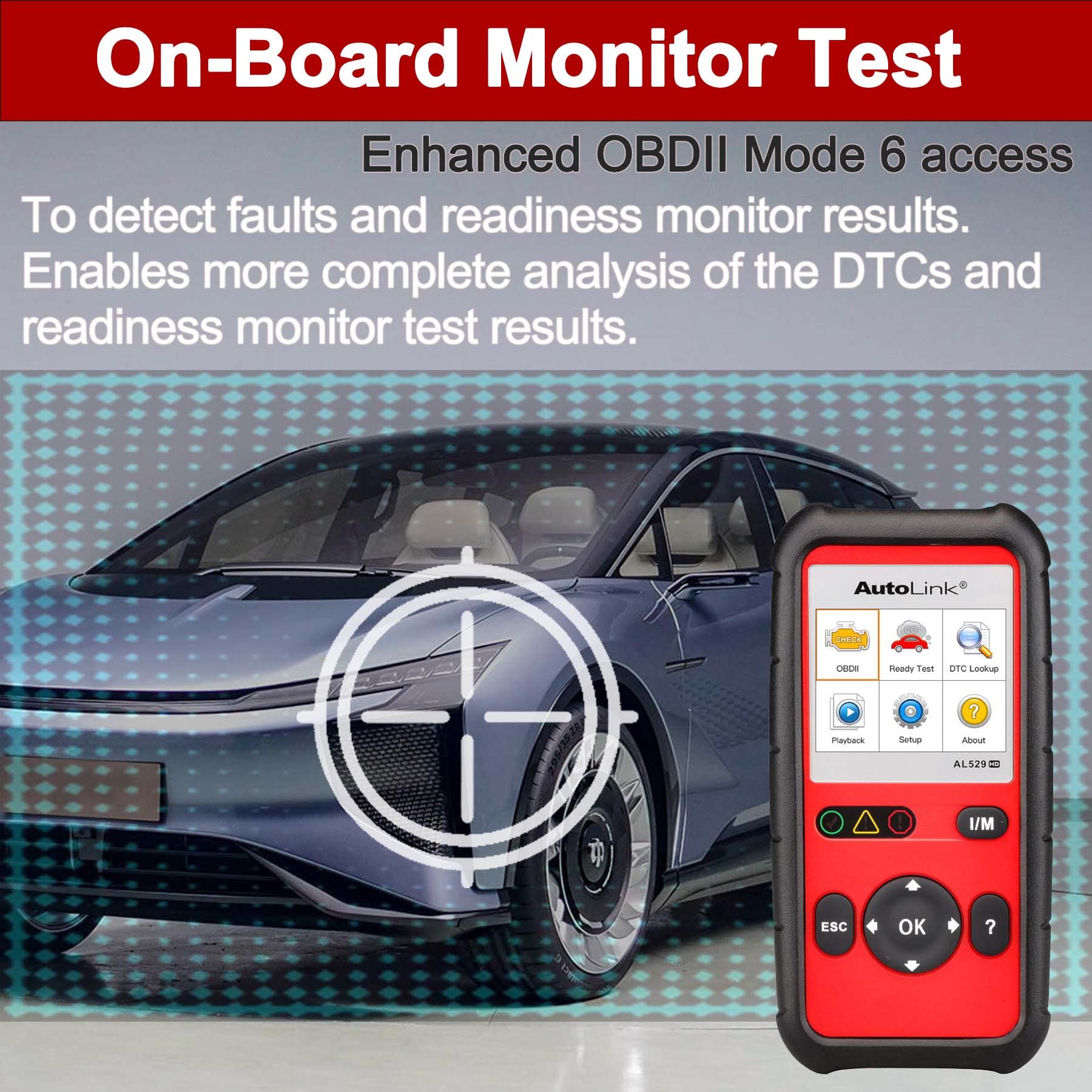

• On-Board Monitor Test (OBDII Mode 6) supported for both CAN and non-CAN equipped vehicles.

Advanced Features

• AutoVIN function for quick and accurate manufacturer-specific code identification.
• Retrieves Vehicle Identification Number (VIN), Calibration ID Numbers (CINs), Calibration Verification Numbers (CVNs), and in-use performance tracking for vehicles 2000 and newer.

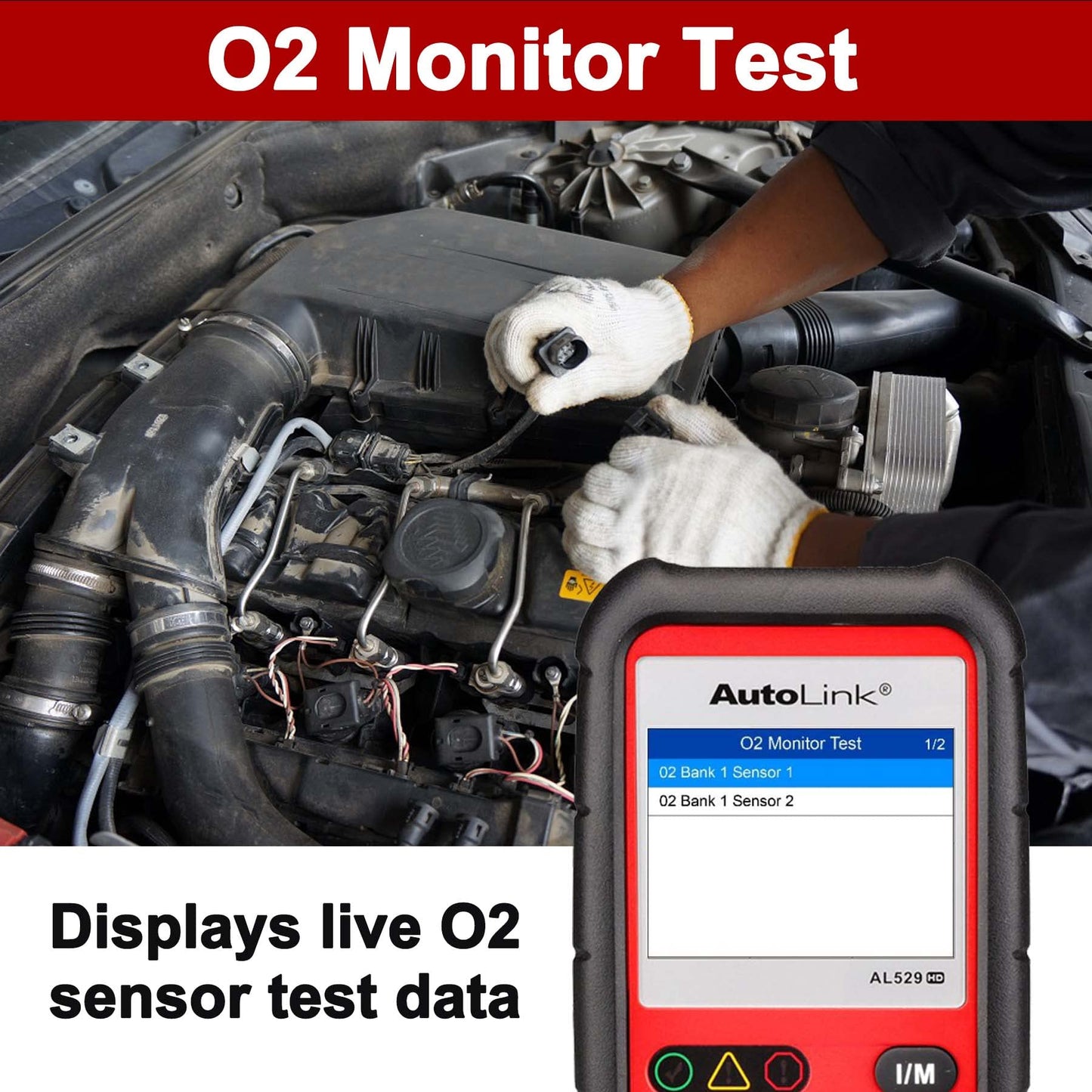

• Automatically tests and records oxygen (O2) sensor data.

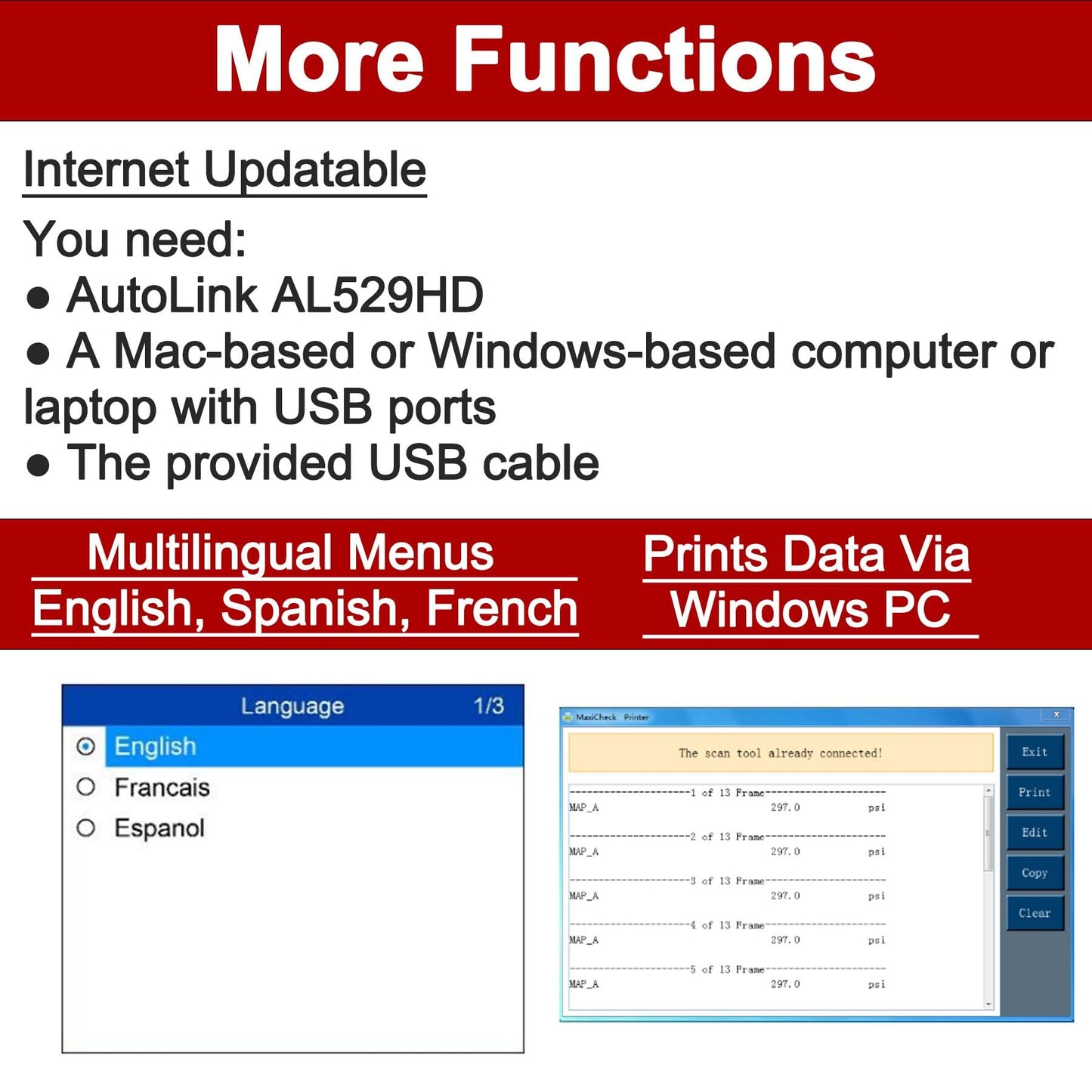

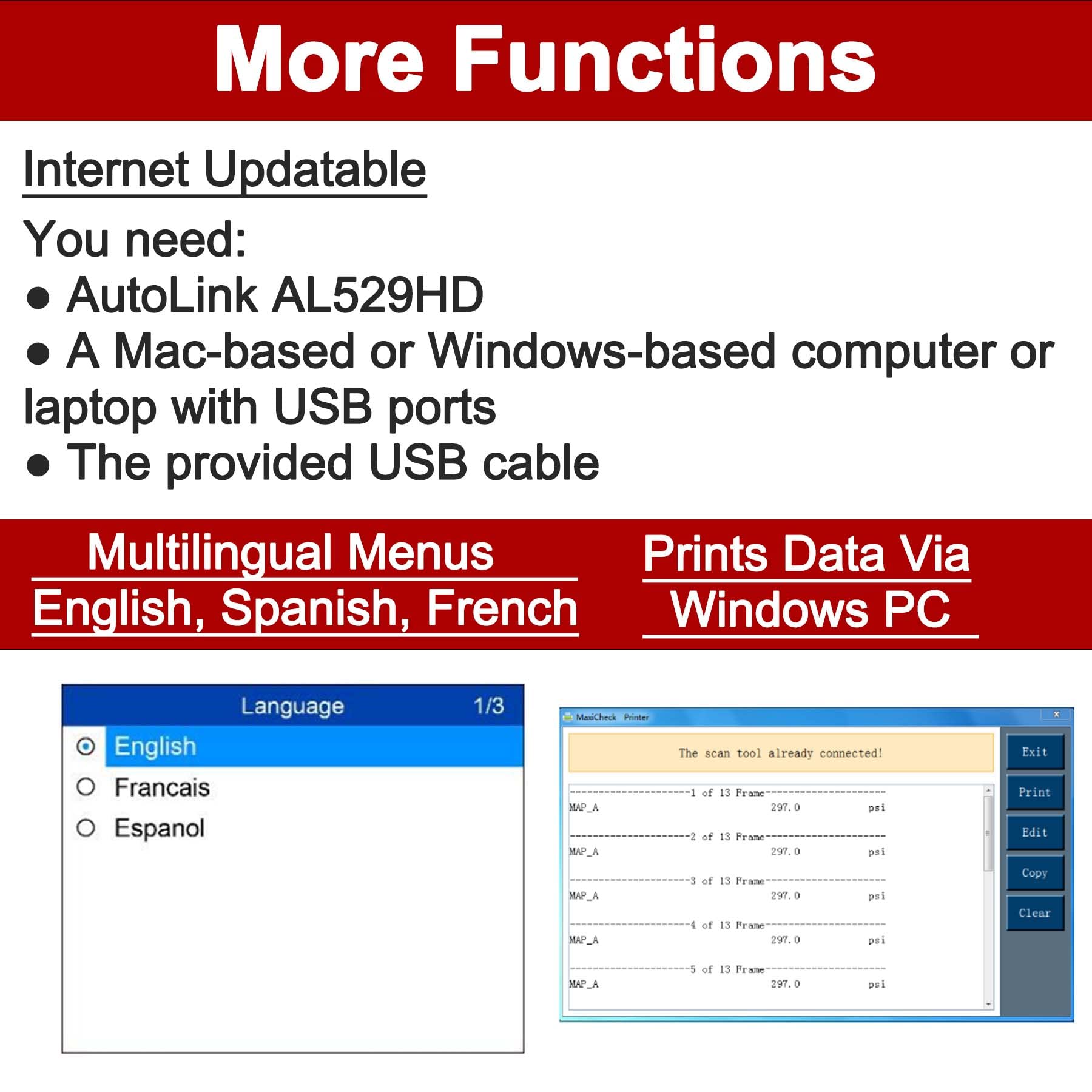

• Multilingual menus including English, Spanish, and French.

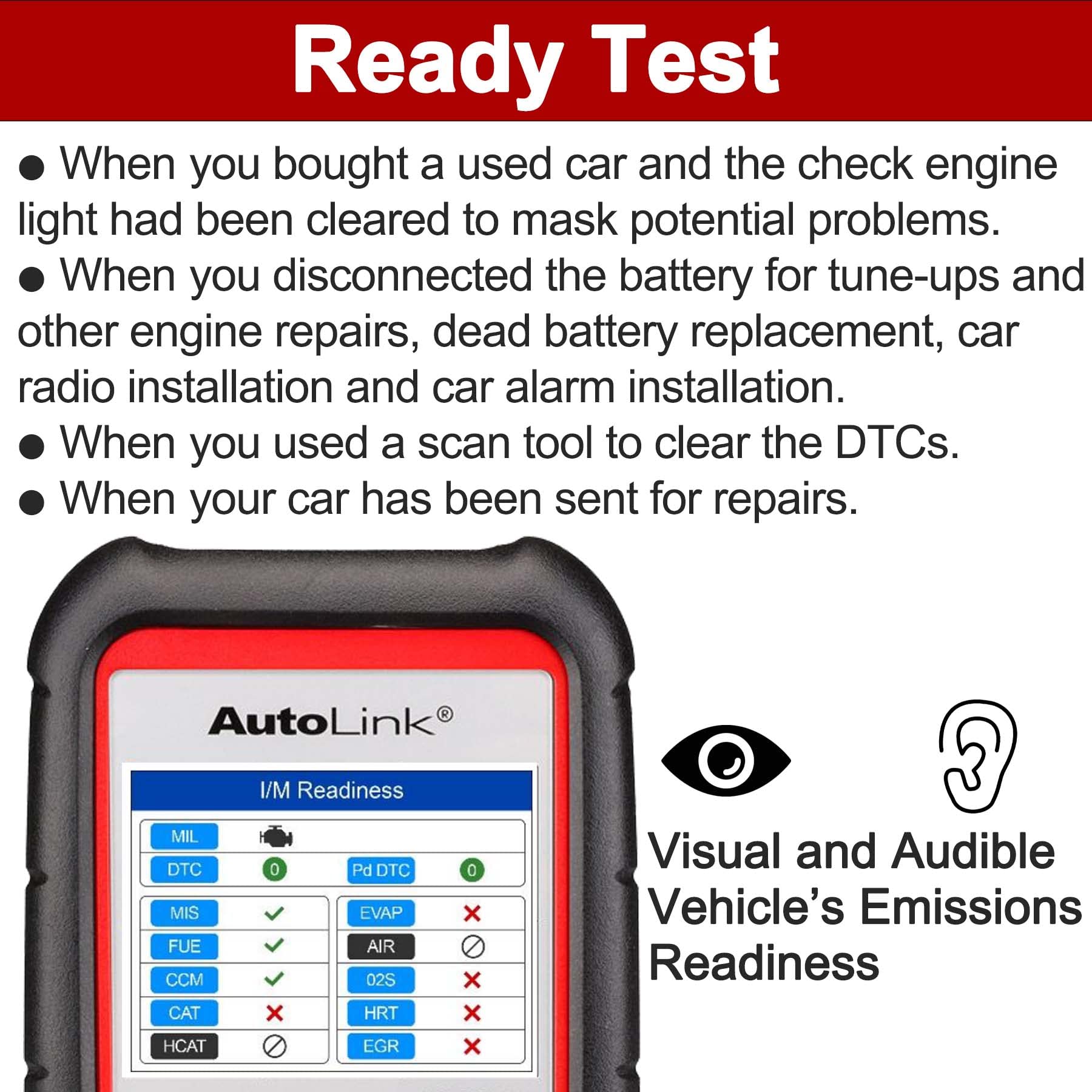

• Color-coded LEDs and built-in speaker provide clear visual and audible feedback.
• Data can be printed via Windows PC and updated through internet connection.

Product Details

• Brand: Autel
• Model Number: AL529HD
• Part Number: AL529HD
• EAN: 0792499185749
• Package Dimensions: 10.5 x 7.4 x 3.4 inches
• Languages Supported: English
