Autel EV Diagnostic Kit – Advanced Electric Vehicle Testing & Battery Analysis

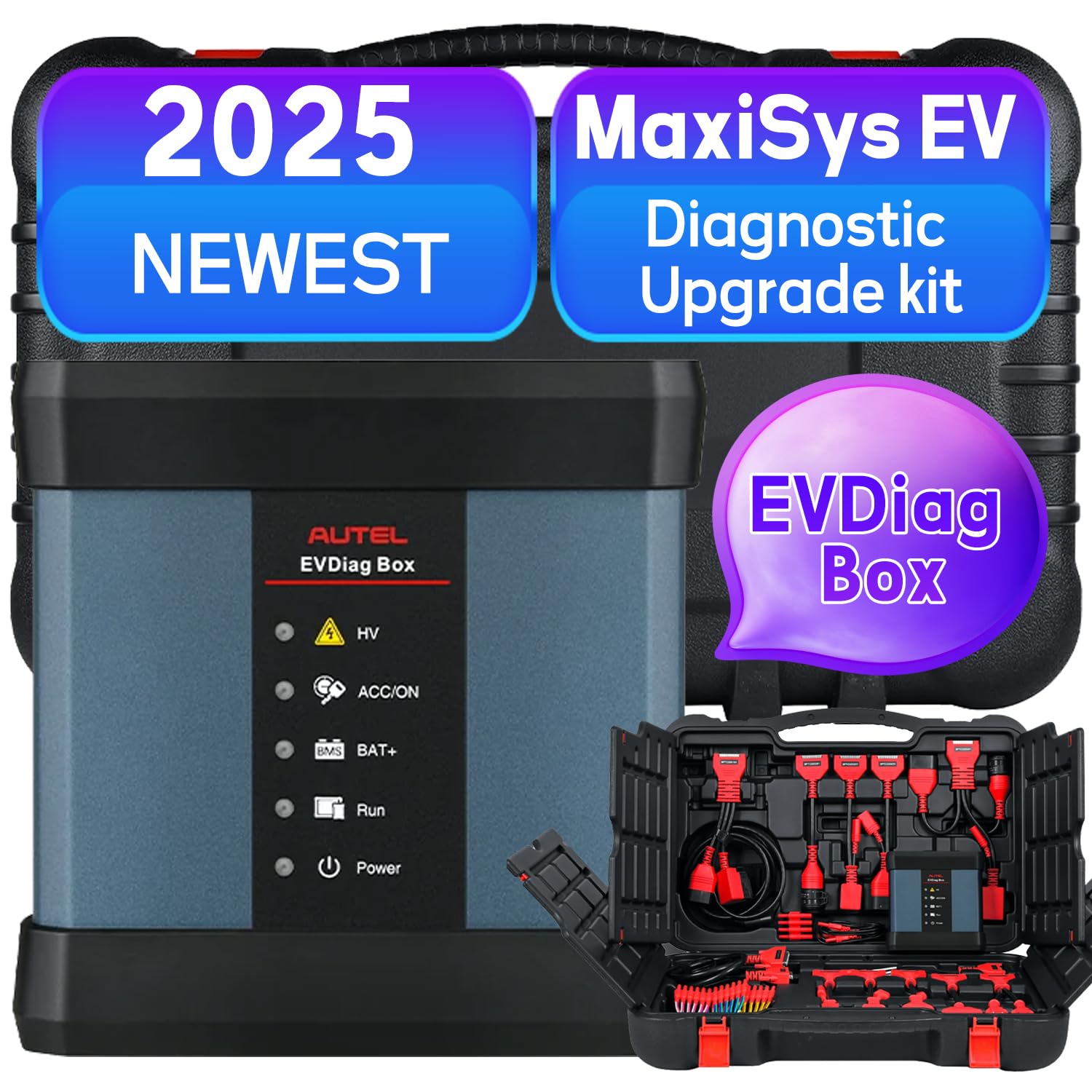

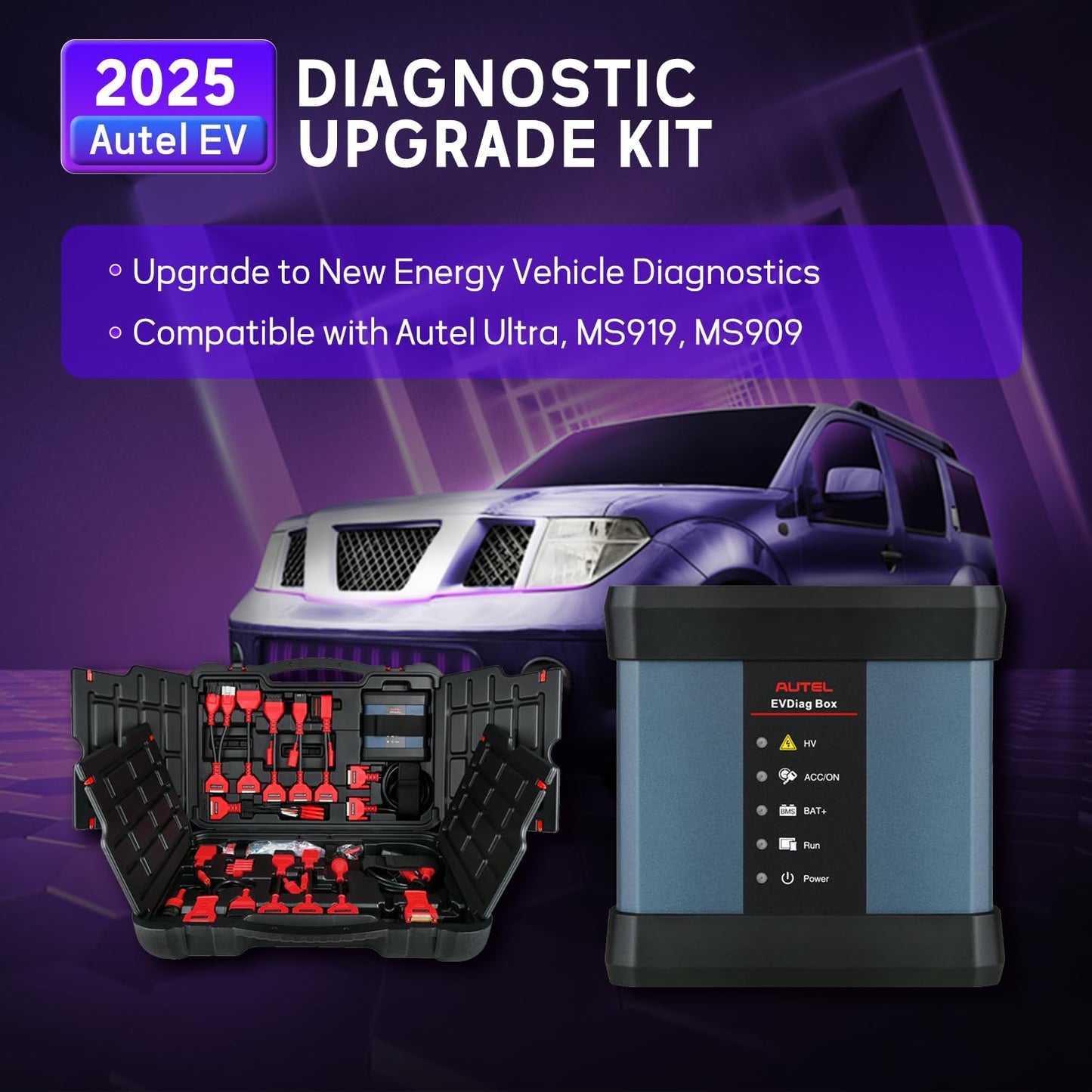

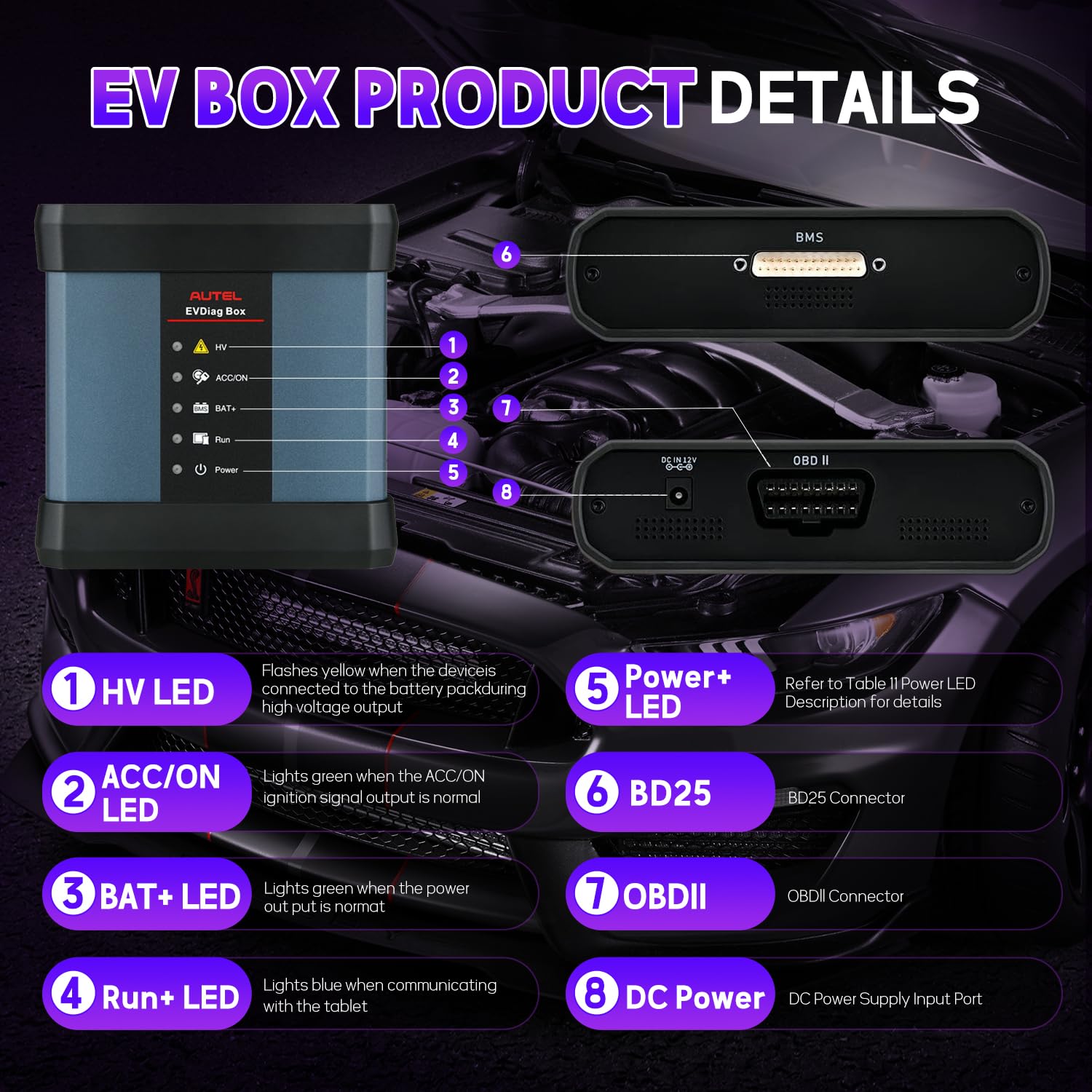

The Autel EV Diagnostic Kit is an essential upgrade kit designed for electric and hybrid vehicle diagnostics. Compatible with Autel MaxiSYS Ultra, MS909, MS919, and Ultra ADAS tablets, this kit includes the powerful EVDiag Box and specialized adapters to perform comprehensive high-voltage system analysis and battery pack diagnostics.

Comprehensive EV Diagnostics & Compatibility

Support thousands of vehicle models, including top EV brands such as BMW, Volkswagen, Audi, Tesla, and many new entrants. The kit enables fault diagnostics for traditional fuel, electric, and hybrid vehicles, offering extensive battery pack inspection and maintenance capabilities.

Key Diagnostic Features:

• Vehicle-specific high-voltage system block diagrams and circuit schematics
• Automatic display of component descriptions and graphical data
• Integrated maintenance instructions and safety guidelines
• Local and remote expert diagnostics to boost shop efficiency

Advanced Battery Pack Analysis

One-tap access to battery State of Charge (SOC) and State of Health (SOH) data with detailed information on module locations and battery conditions. The intuitive interface supports diagnosis via OBD, battery connectors, and jumper connections, with safety precautions and professional maintenance recommendations.

Battery Features Include:

• Detailed schematics for special connectors and jumper setups
• Cable selection prompts and safe operation reminders
• Comprehensive battery health and maintenance guidance

Intelligent 2nd Generation Topology System Mapping

This upgrade features enhanced topology mapping with faster scanning, broader coverage, and more precise code matching. Easily read and clear codes, view live data on high-voltage EV systems, and streamline diagnostics for quicker repair and service.

Important Note:

The EVDiag Box may not be compatible with all vehicle models. Please send your VIN to [email protected] to confirm compatibility before purchasing.

Product Details:

• Brand: Autel
• Model Number: EV Diagnostics Kit
• Part Number: Autel EV Upgrade Kit
• Package Dimensions: 25.5 x 16.8 x 7.0 inches
• Language: English
