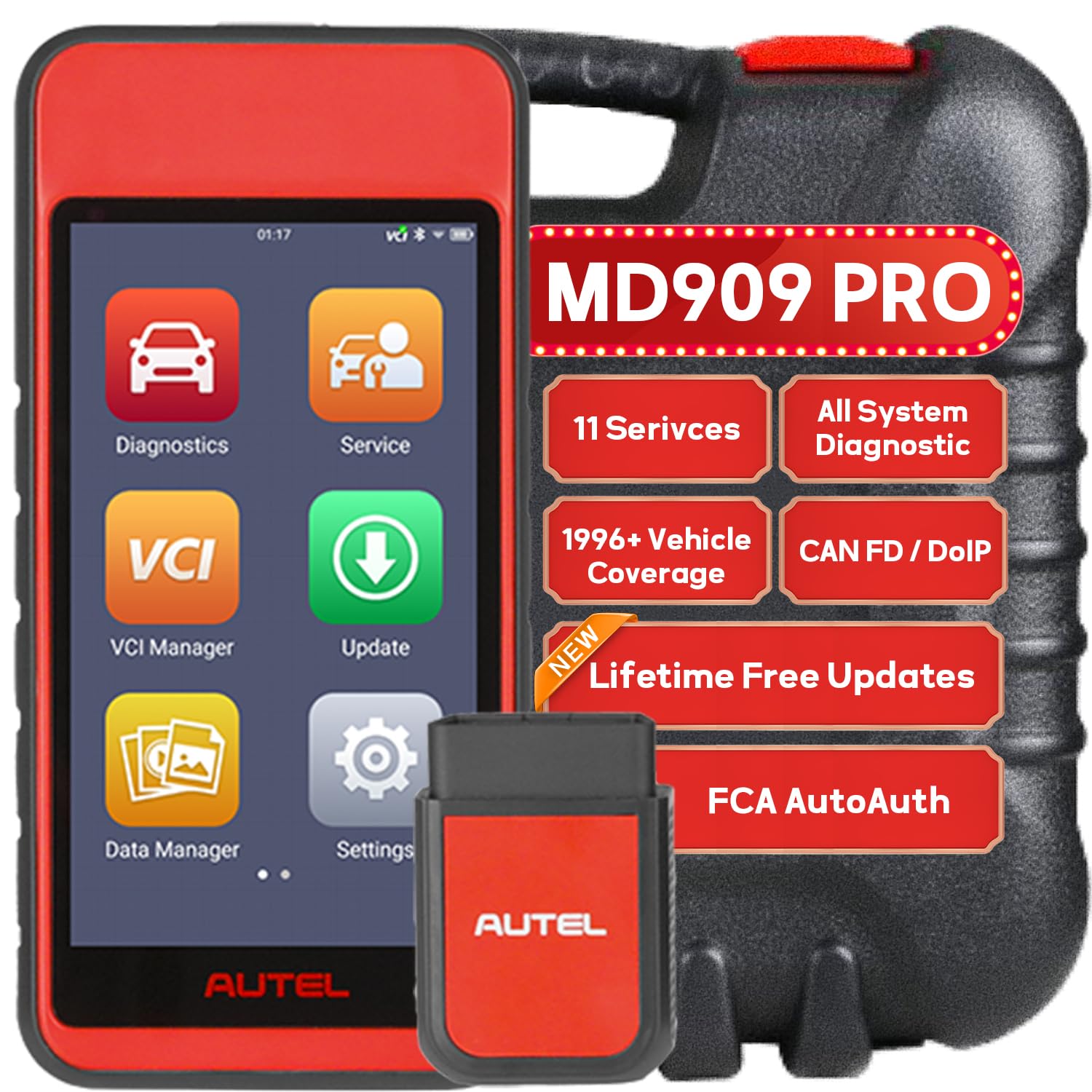

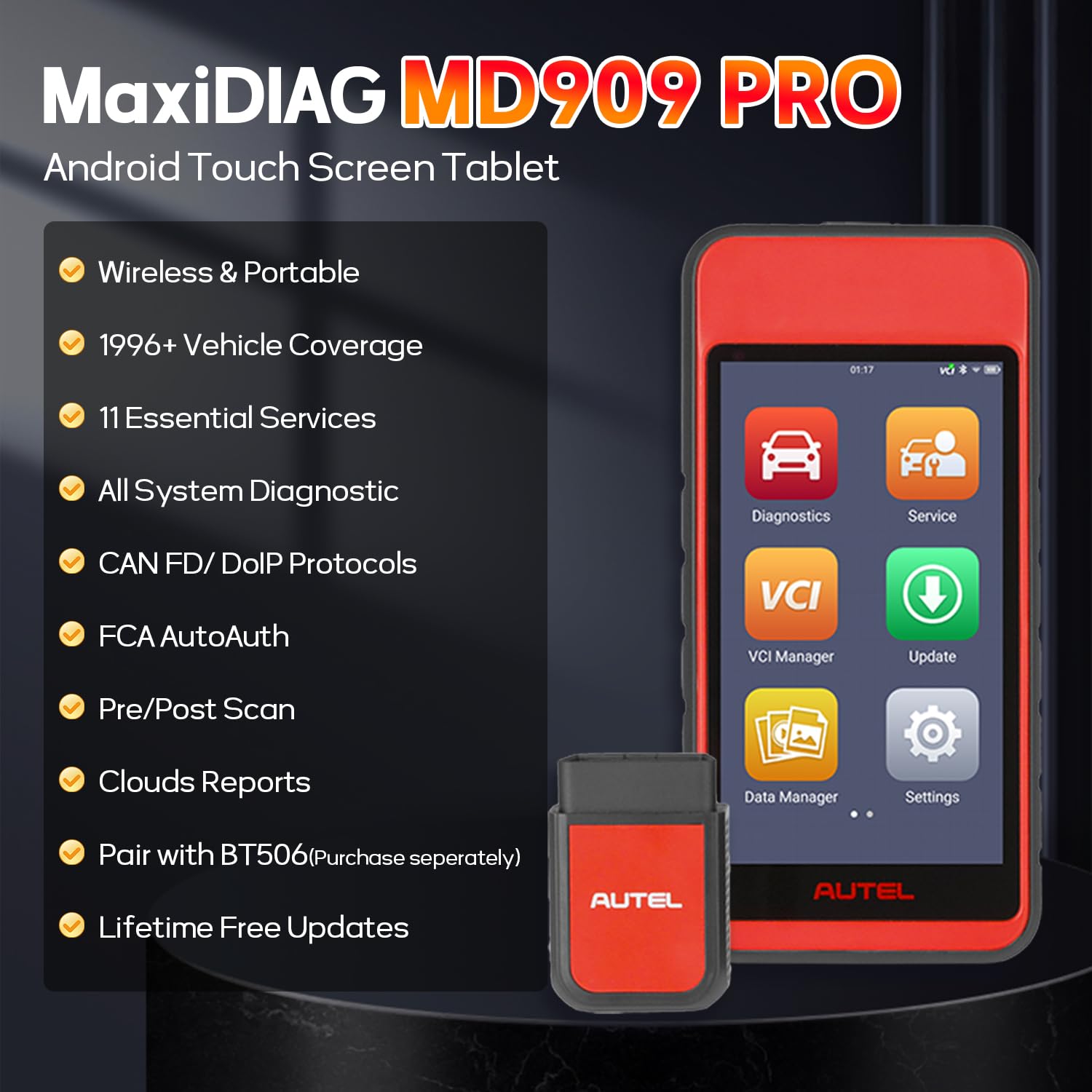

Autel MaxiDiag MD909 Pro – 2025 Professional OBD2 Scanner with All-System Diagnostics & 11+ Services

Overview

The Autel MaxiDiag MD909 Pro is the latest 2025 upgrade to Autel’s popular MD806 and MD808 Pro models. Designed for both professional garages and advanced DIY mechanics, this all-system OBD2 scanner offers comprehensive diagnostics and 11+ essential service functions with support for CAN-FD and DoIP protocols. With Bluetooth connectivity, robust hardware, and compatibility with vehicles from 1996 to present, it's the perfect diagnostic solution for US, Asian, and European vehicles.

Key Features

✅ All-System Diagnostics

• Full-system scanning: Engine, ABS, SRS, EPB, PCM, ECM, EPS, and more
• Read and clear DTCs (Diagnostic Trouble Codes)
• Live data streaming: Transmission temperature, cylinder balance, engine speed
• Freeze frame data and ECU info retrieval
• Auto Scan for faster and deeper diagnostics

✅ 11+ Maintenance Service Functions

• Oil Reset
• EPB (Electronic Parking Brake) Reset
• Steering Angle Sensor (SAS) Reset
• TPMS Relearn
• Brake Bleeding
• Diesel Particulate Filter (DPF) Regeneration
• Battery Registration
• Throttle Relearn
• Air-Fuel Ratio Reset
• And more...

✅ Advanced OBD2 Coverage

• Supports all 10 modes of OBD2 tests
• O2 sensor and onboard monitor testing
• I/M readiness status and vehicle information retrieval

✅ CAN-FD & DoIP + Security Gateway Access

Equipped with Bluetooth V150Lite and compatibility with CAN-FD and DoIP, this tool supports newer vehicles and unlocks security gateways for Chrysler, Jeep, RAM, Fiat, Alfa Romeo, Nissan, and others (AutoAuth account required).

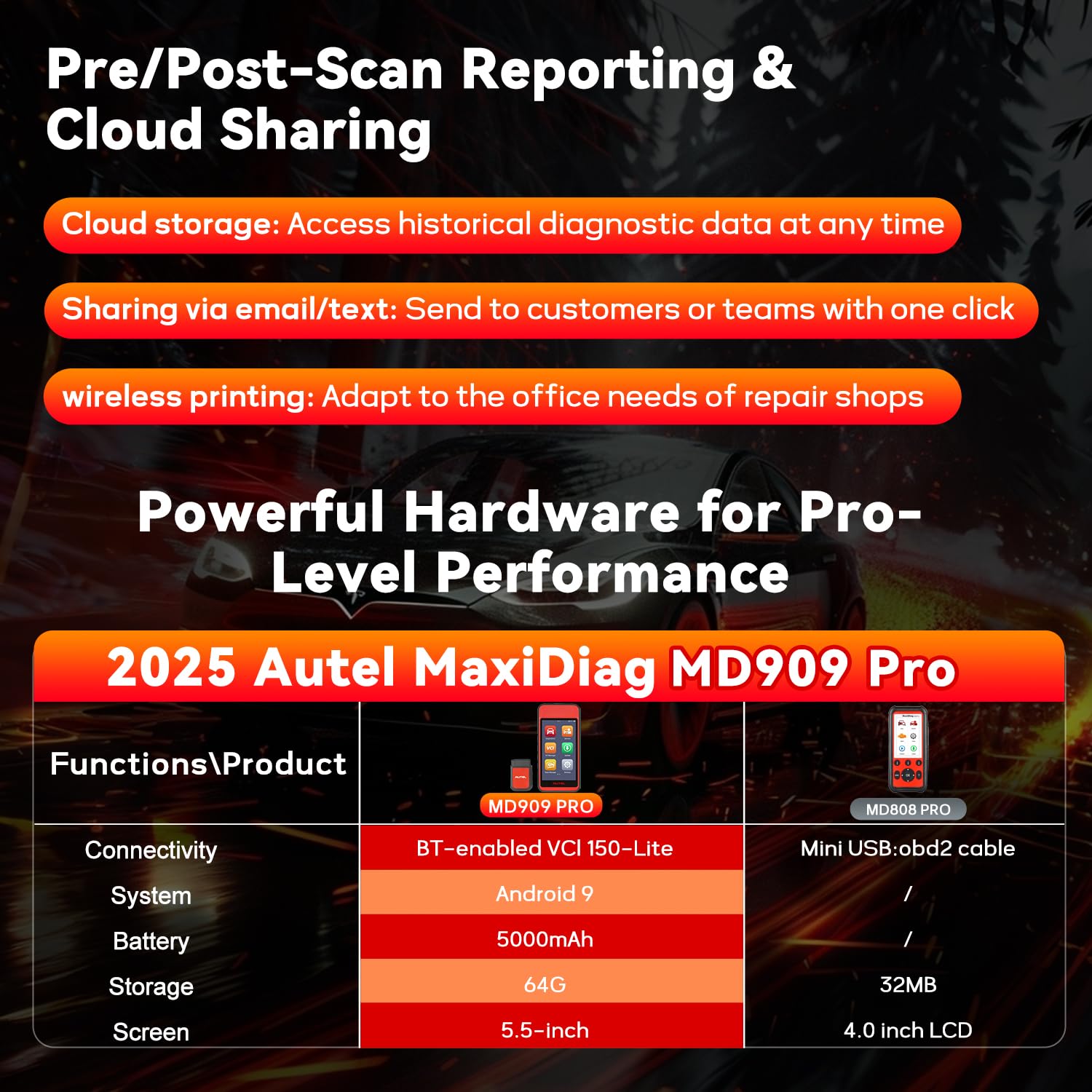

Pro-Grade Hardware

• 5.5” touchscreen for easy navigation
• 64GB internal storage
• 5000mAh battery with 8 hours runtime
• Android 9.0 operating system

Lifetime Free Updates & Expandable Functions

Enjoy lifetime free software updates and a 1-year warranty. Compatible with the optional Autel BT506 battery tester (sold separately) for full battery health diagnostics.

What’s Included

• 1x Autel MaxiDiag MD909 Pro
• 1x Bluetooth V150Lite
• 1x Charging Cable
• 1x User Manual

Installation Support

Our team provides full installation support. If you encounter any issues, we’re here to help you step-by-step to get started quickly.

Important Notice

This scanner is suitable for vehicles from 1996 to present that are OBDII compliant. For full compatibility with security gateway access, an AutoAuth account may be required.

Product Specifications

• Model: Autel MaxiDiag MD909 PRO
• Part Number: Autel MD909 PRO
• EAN: 0792499190989
• Package Dimensions: 13.0 x 9.8 x 3.9 inches
• Languages: English
