Autel MaxiSys EV Upgrade Kit – Advanced Electric Vehicle Diagnostic Solution 2025

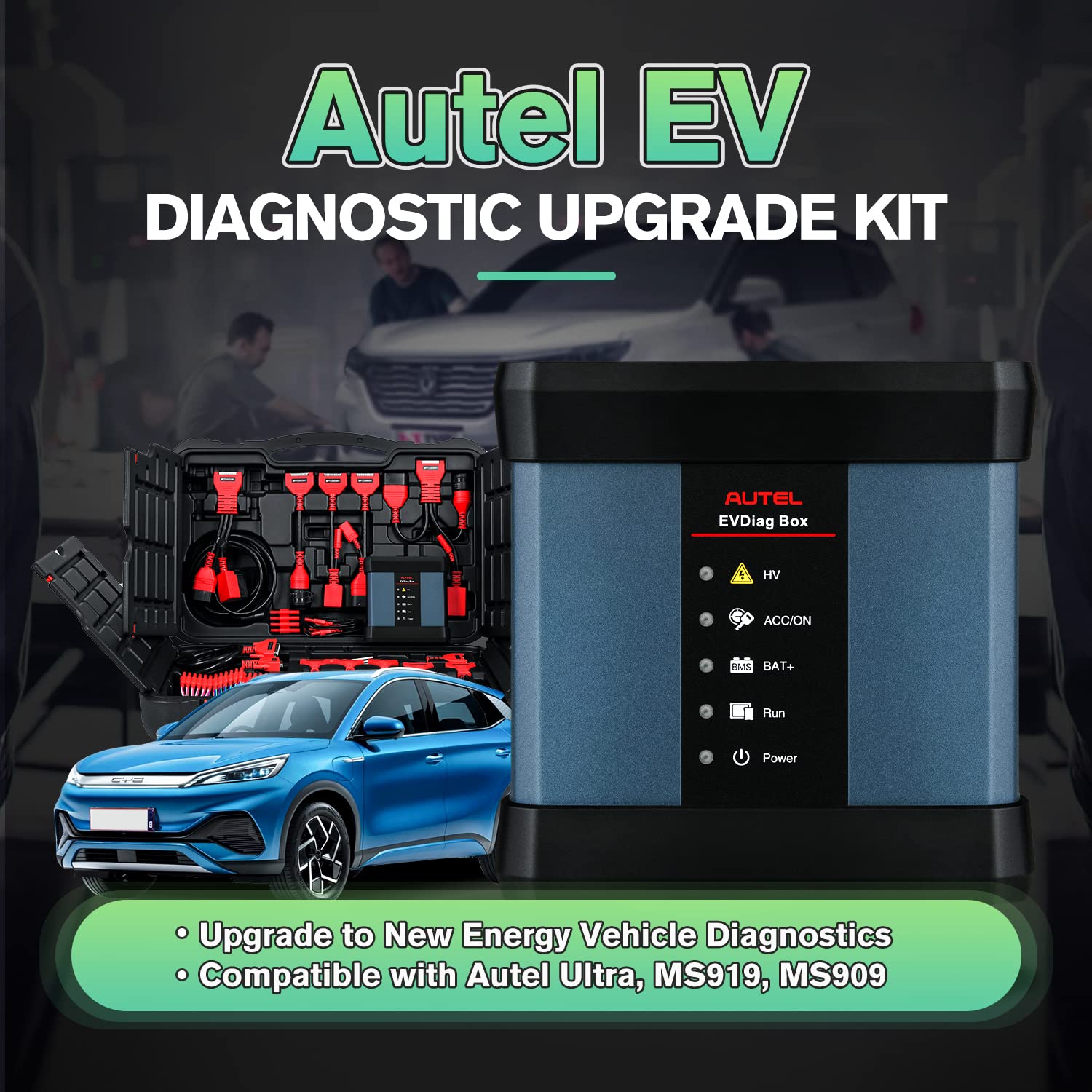

The Autel MaxiSys EV Upgrade Kit is the perfect expansion tool for your existing Autel Ultra, MS919, or MS909 scanners, enabling comprehensive electric vehicle (EV) diagnostics and high-voltage system analysis. Designed for the growing new energy vehicle market, this kit delivers in-depth battery pack testing, advanced topology mapping, and full HV system diagnostics to keep your EV service business ahead of the curve.

Expand Your EV Diagnostic Capabilities

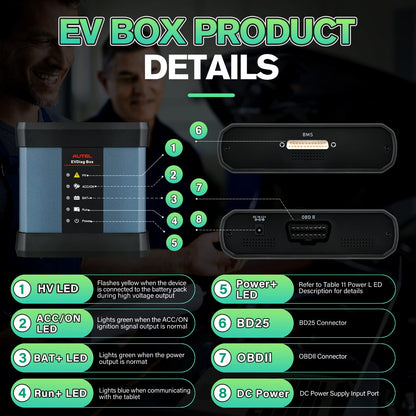

Compatible with Autel Ultra, MS919, and MS909 scanners, the EVDiag Box adds essential EV functions without needing a new scanner.

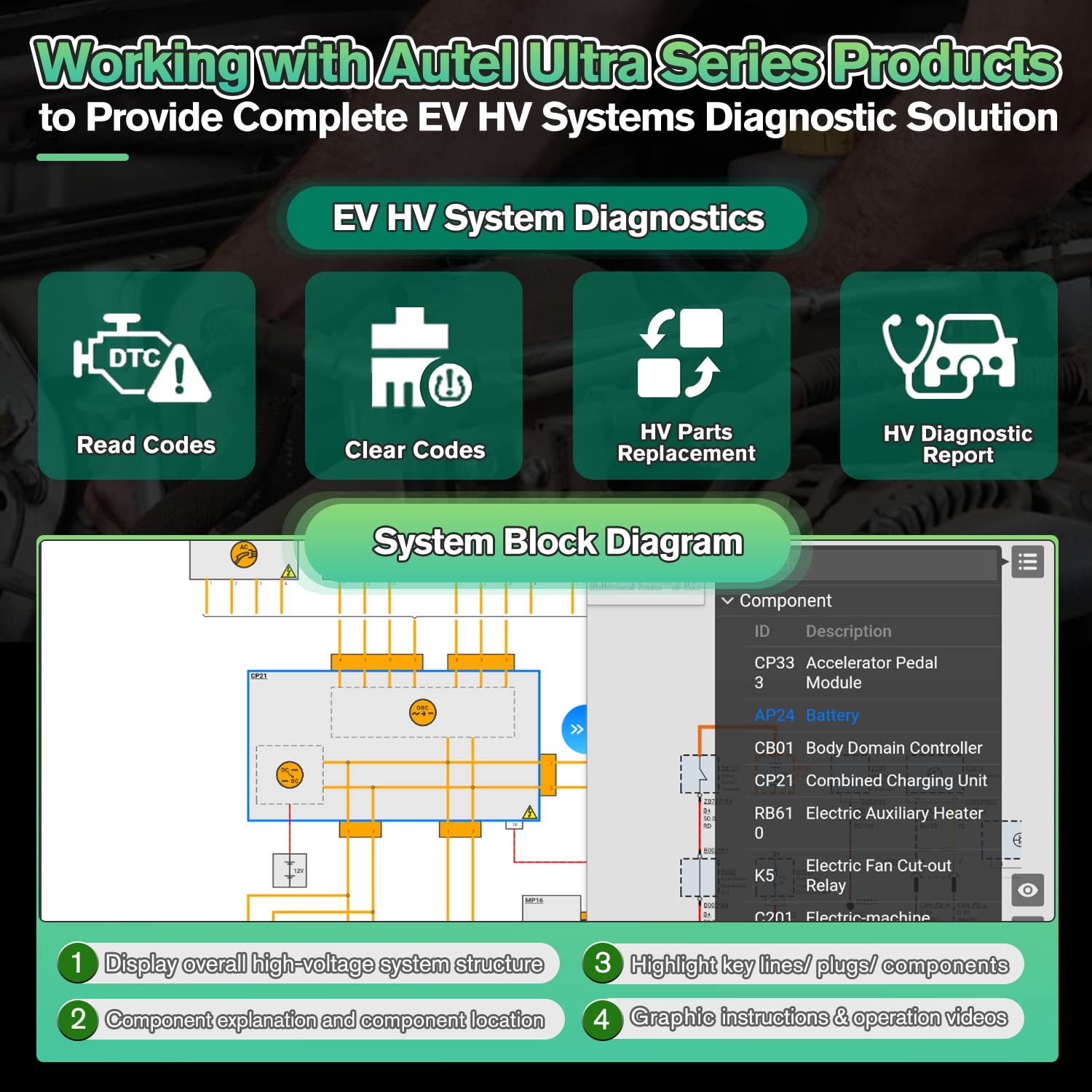

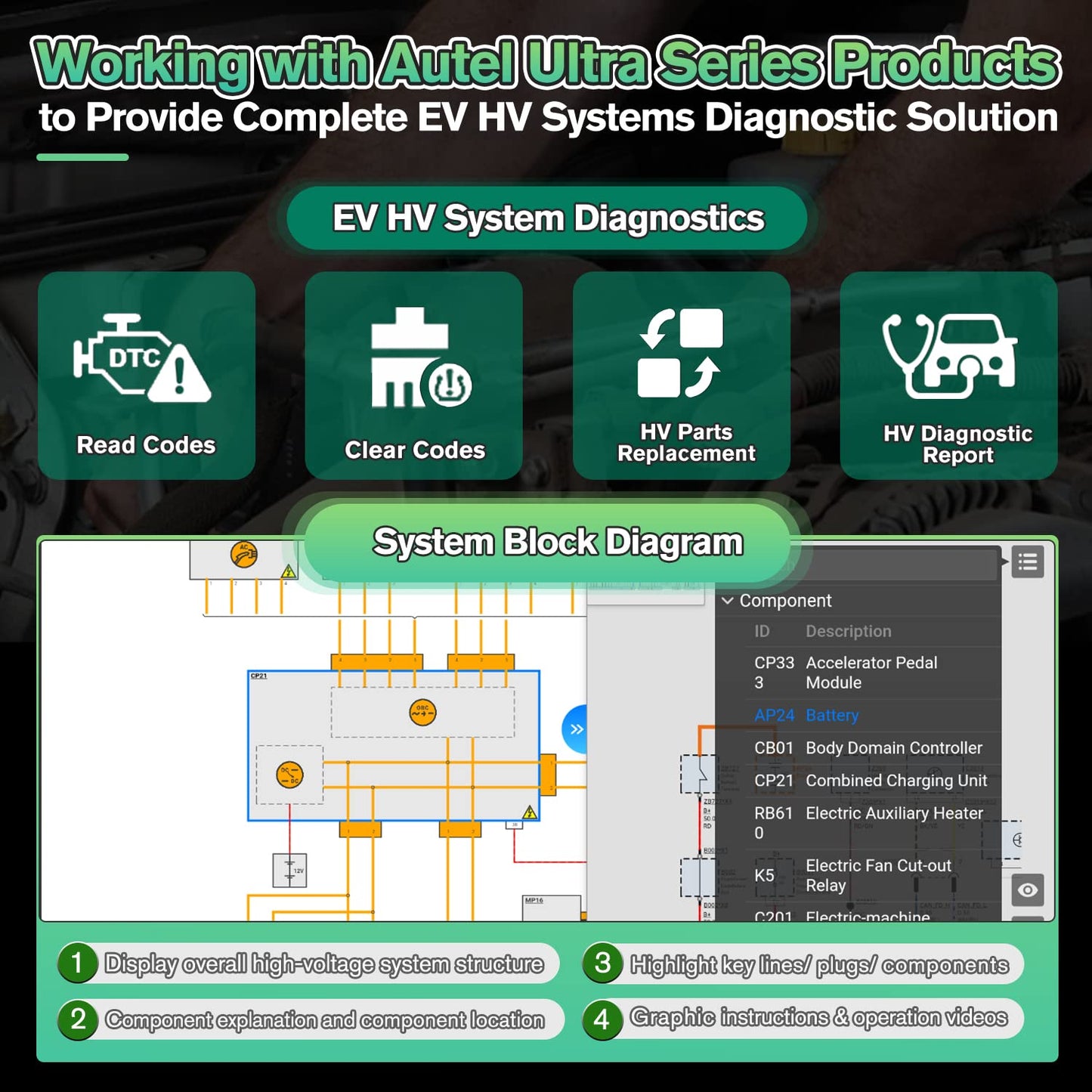

• Complete high-voltage (HV) system diagnostics with safe, guided operations
• Read and clear codes, perform HV parts replacement, and generate detailed diagnostic reports
• Includes step-by-step system block diagrams and instructional videos for easy use

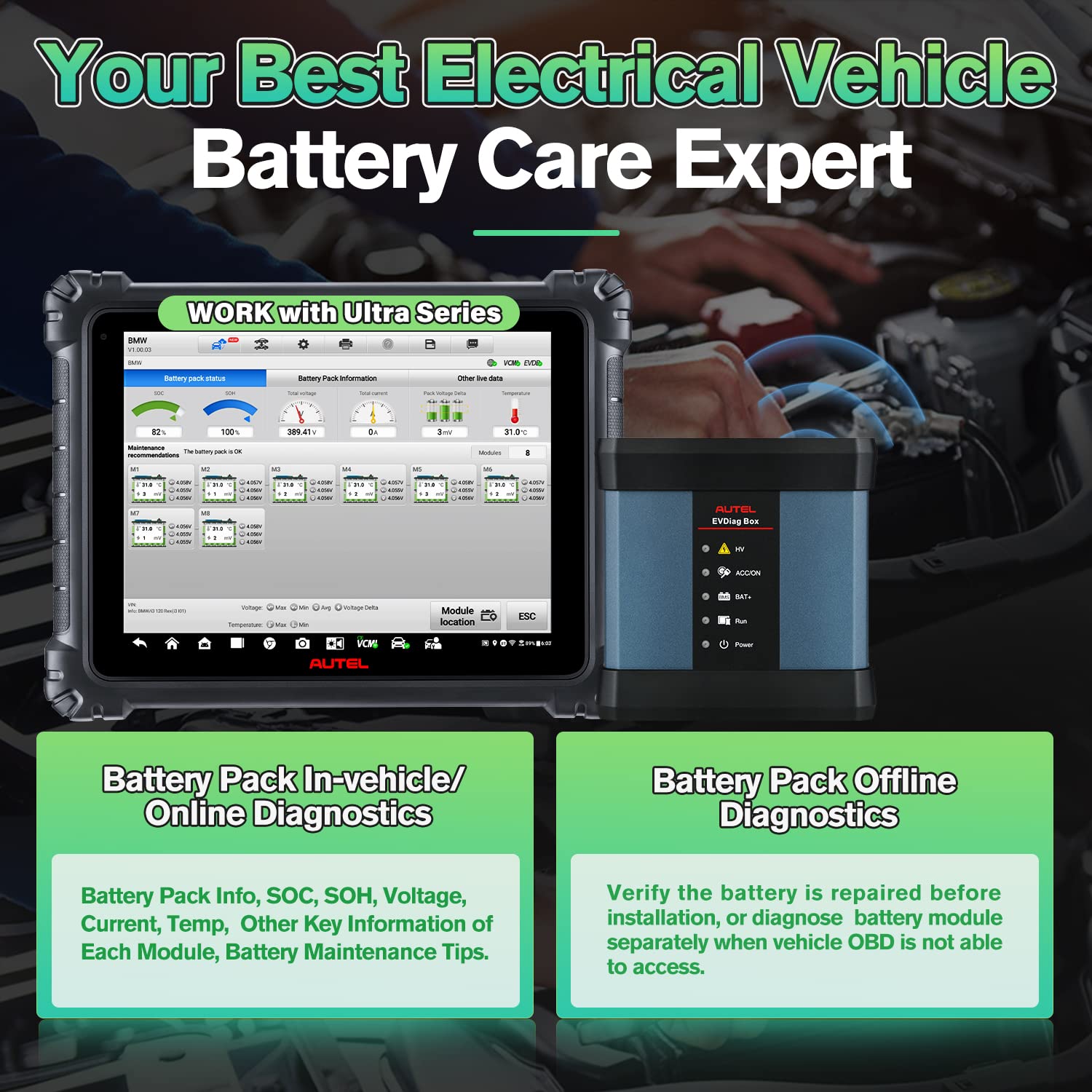

In-Depth Battery Pack Analysis

• Analyze battery packs via vehicle OBD or directly using specialty cables and jumpers
• View battery info including State of Charge (SOC), State of Health (SOH), voltage, current, and temperature
• Receive battery maintenance tips with detailed graphical displays and connection guidance

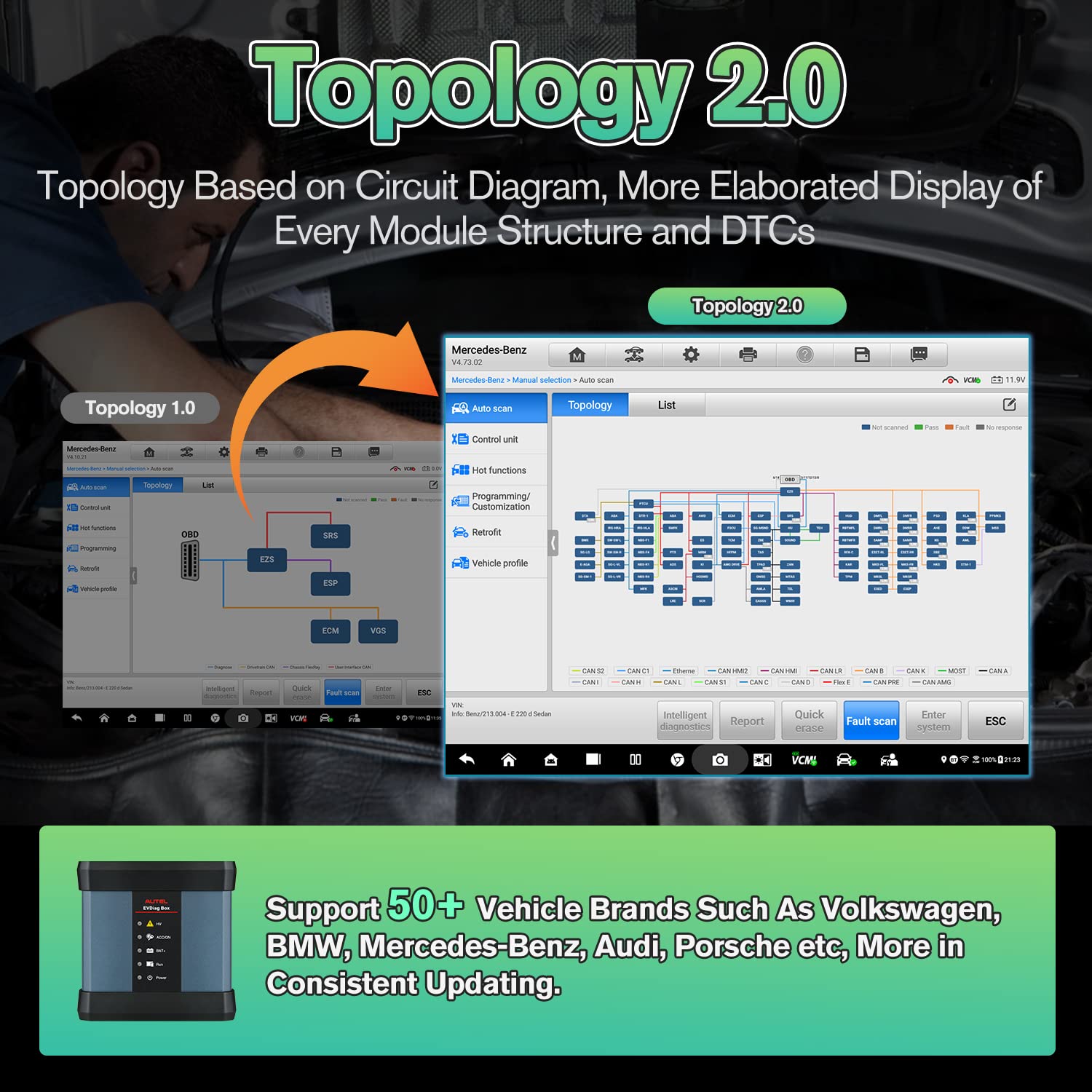

Advanced Topology 2.0 Mapping

Access the upgraded Topology 2.0 feature, offering one-to-one accurate topology diagrams matching the vehicle's configuration for 50+ EV makes. Continuously updated for reliability on new models.

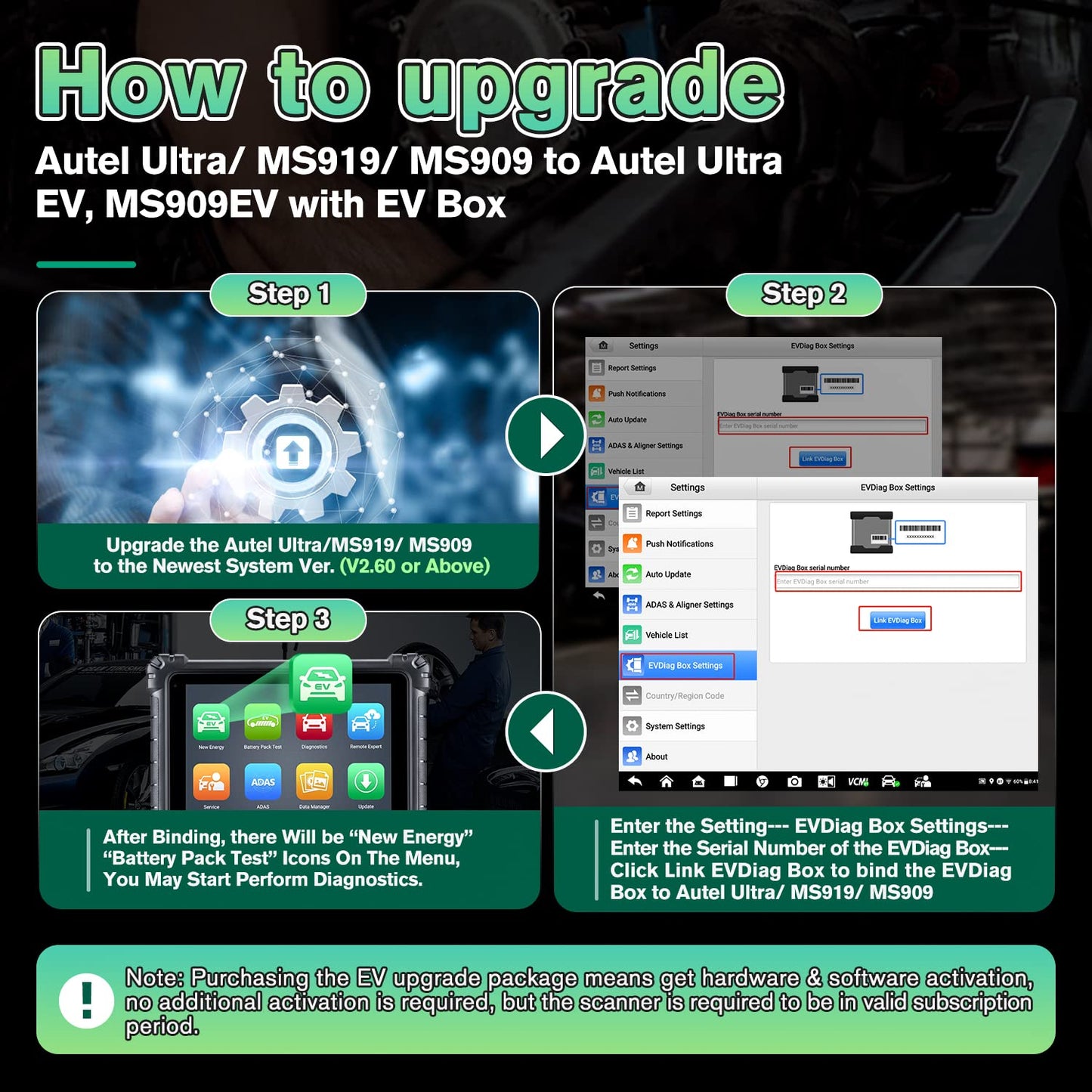

Simple Upgrade Process

• Step 1: Update your scanner system to V2.60 or higher
• Step 2: Link your EVDiag Box via settings by entering the serial number
• Step 3: New EV diagnostic menus appear, activating full EV functionality

Note: EVDiag Box purchase includes hardware and software activation. Valid scanner subscription required.

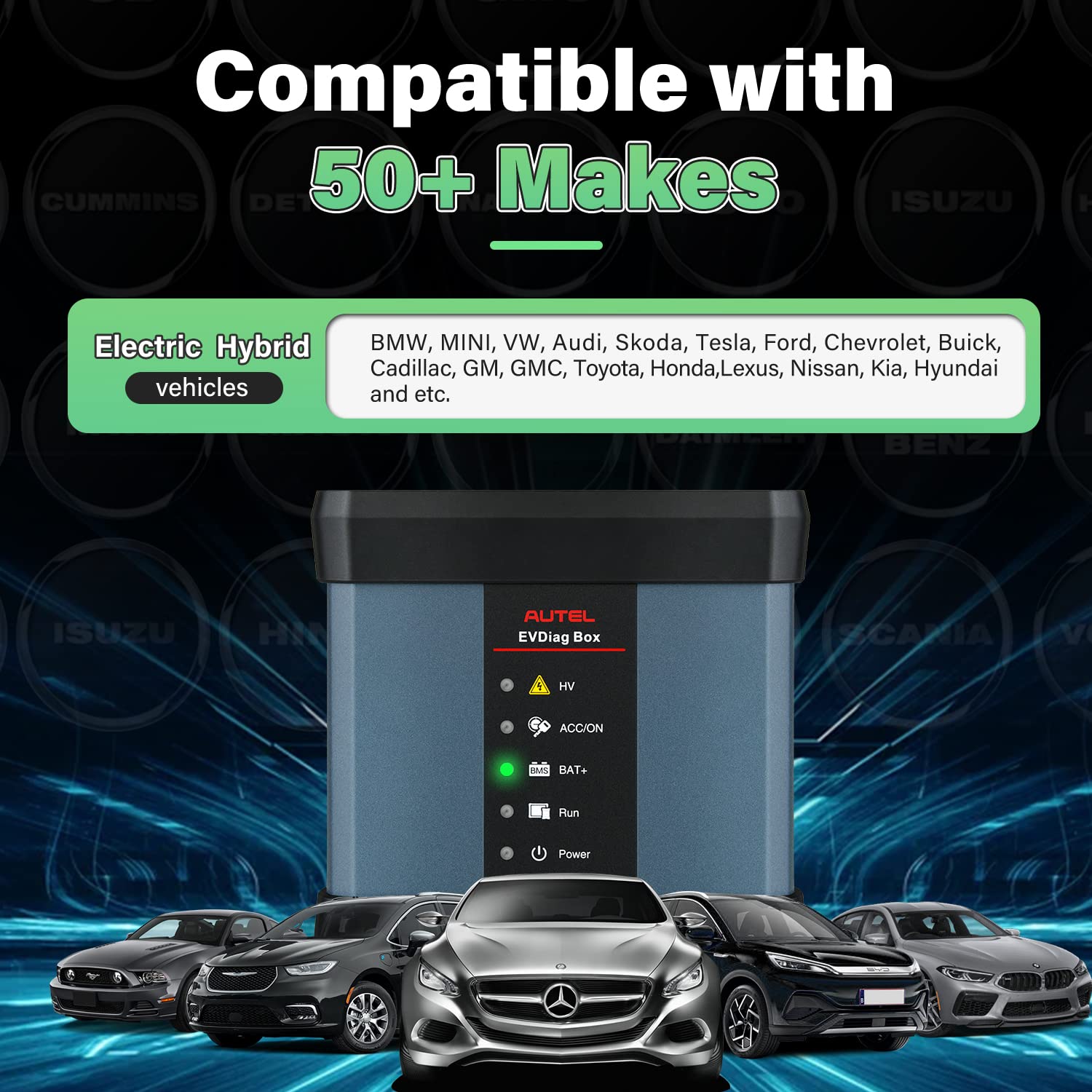

Wide Vehicle Compatibility

The Autel EVDiag Box supports 99% of U.S., European, and Asian electric, hybrid, gasoline, and diesel vehicles, including brands like BMW, MINI, VW, Audi, Tesla, Ford, Chevrolet, Honda, Toyota, Lexus, Hyundai, Kia, Renault, BYD, and many more.

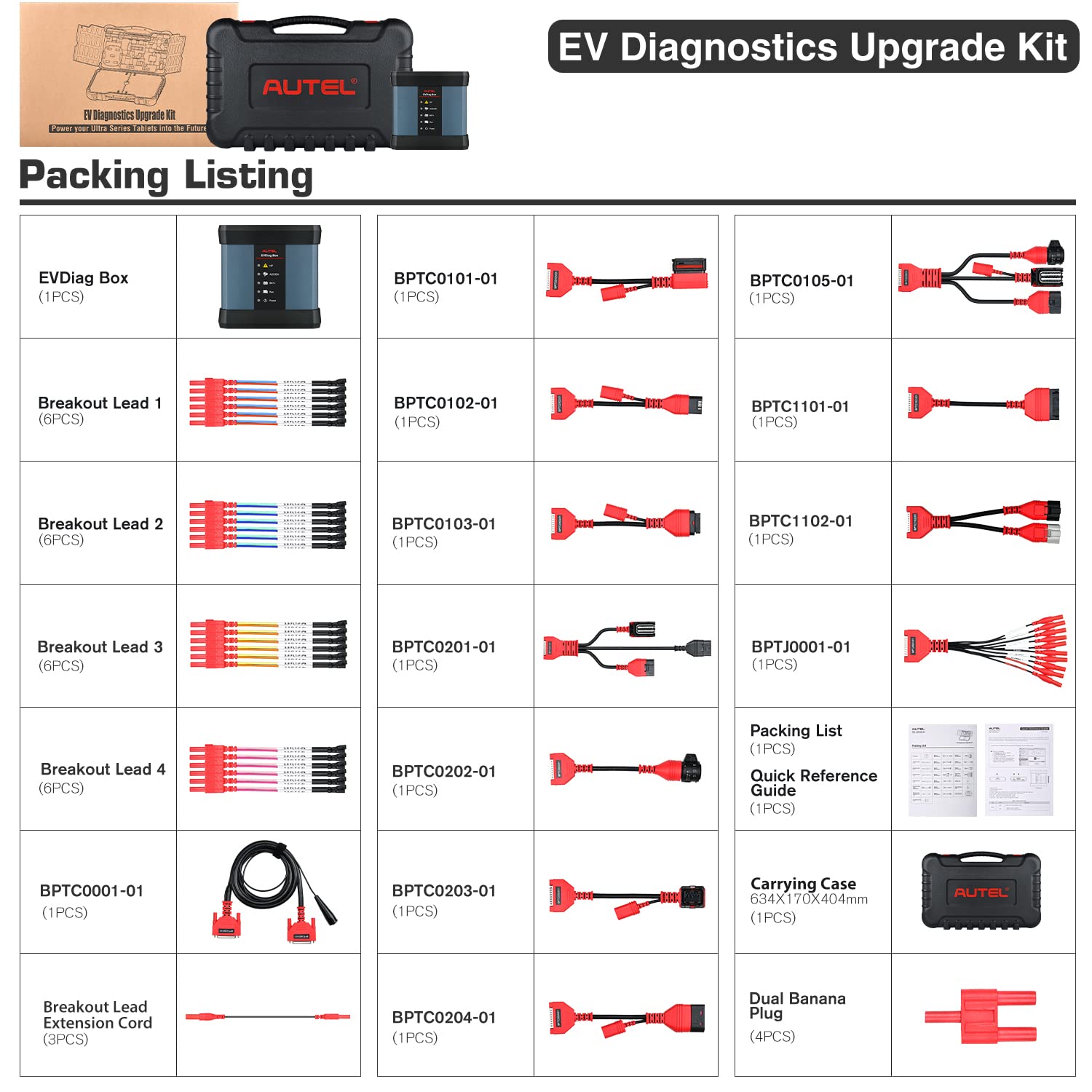

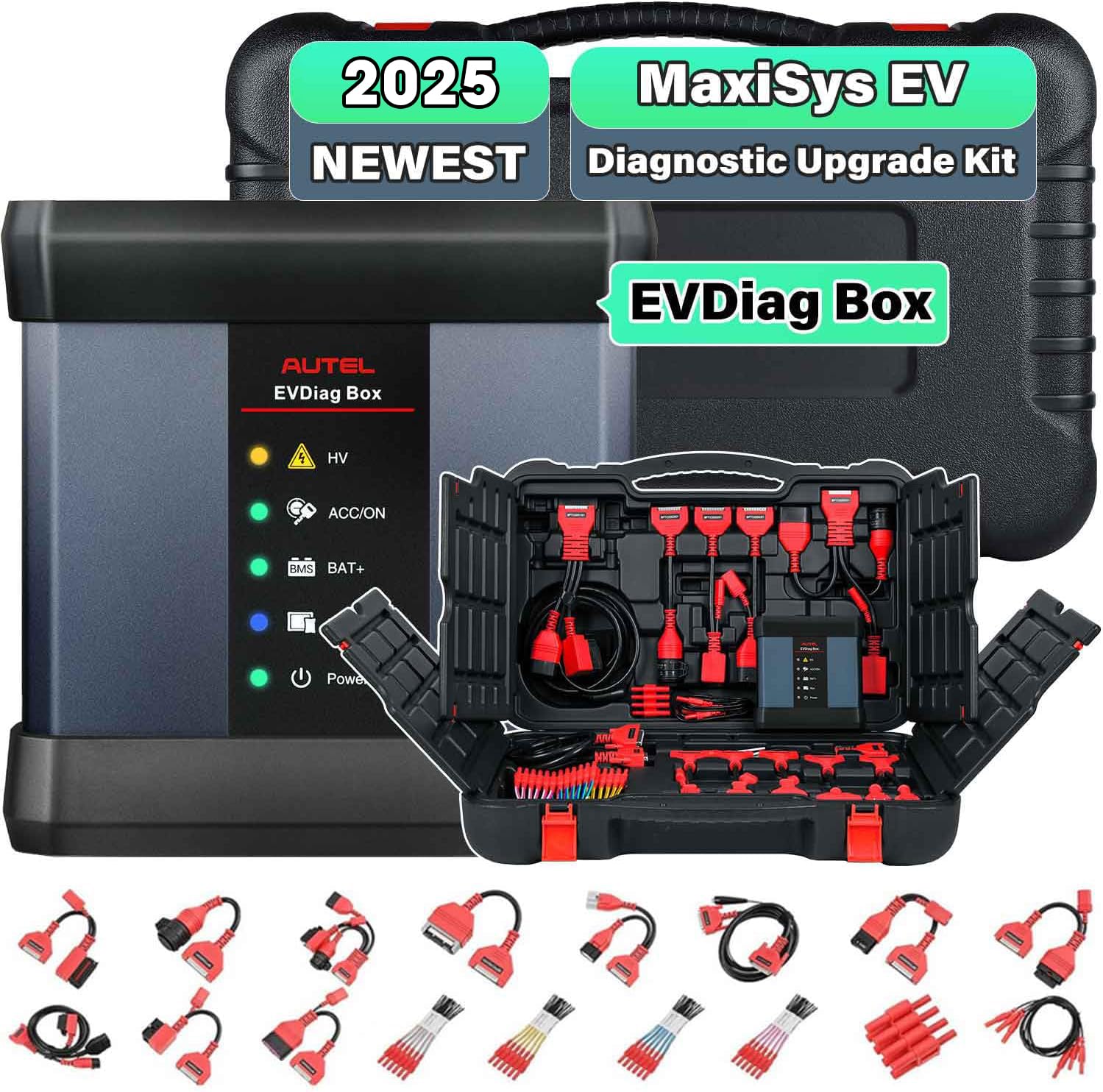

Package Contents

• 1× EVDiag Box
• Multiple EV adapters and breakout leads
• Specialty cables including DB25 snake cable and extension cords
• Quick reference guide and carrying case

Model & Packaging Info

Model Number: Newest Autel MaxiSys EV DiagBox Kit
Part Number: Autel MaxiSys EV Box Kit
EAN: 0849438018115
Package Dimensions: 25.5 x 17.0 x 7.0 inches
