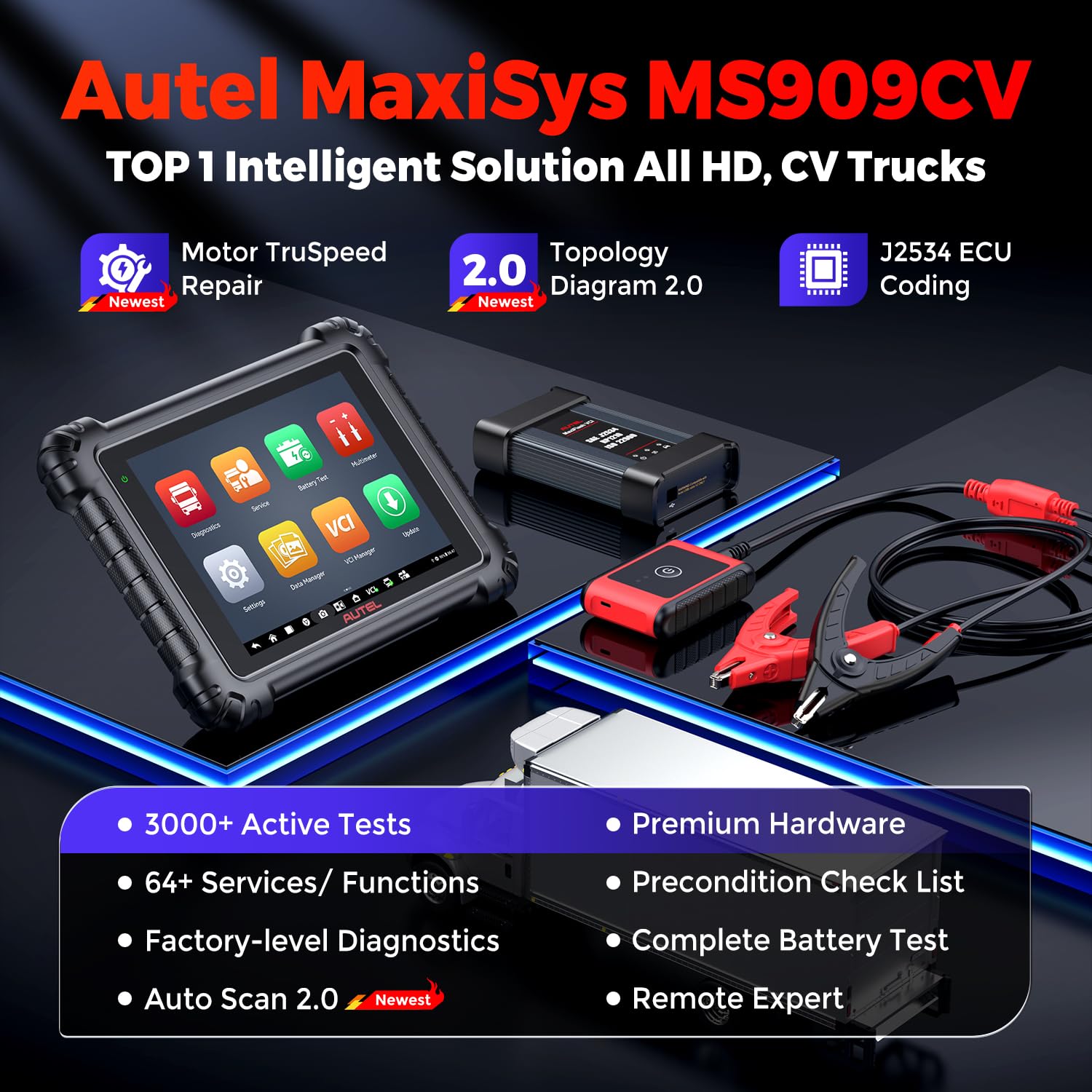

Autel MaxiSYS MS909CV | 2025 Heavy Duty Truck Diagnostic Scanner

Top-Rated 2025 Autel Truck Diagnostic Tool

The Autel MaxiSYS MS909CV is the ultimate commercial vehicle diagnostic scanner for 2025, built for professional repair shops and heavy-duty fleets. Designed as an upgrade over the MS908CV and MS906CV, it includes full OE-level diagnostics, advanced ECU programming & coding, enhanced Topology 2.0 visualization, and 64+ maintenance services for diesel and gas-powered heavy-duty trucks.

Powerful Hardware & Intelligent Features

• High-Speed Performance: Powered by an Octa-core processor (2.2GHz + 1.8GHz), 4GB RAM, 128GB storage
• Long-Lasting Battery: 15,000mAh rechargeable battery for full-day usage
• Wide Coverage: Supports 150+ commercial vehicle makes & models
• Free 1-Year Software Updates & Warranty

Motor TruSpeed Repair (Optional Upgrade)

Go beyond intelligent diagnostics with Motor TruSpeed Repair. This advanced module offers:

• OEM maintenance schedules and repair procedures
• Wiring diagrams, TSBs, and OEM position statements
• ADAS-related service data
• Optional subscription ($650/year, US & Canada IPs only)

Enhanced Topology 2.0 CAN BUS Mapping

Topology 2.0 gives you a dynamic overview of the vehicle’s ECU structure. View all modules, DTC counts, and their interrelations in color-coded format for faster, more visual troubleshooting.

Advanced ECU Programming & Coding

With J2534 compatibility, the MS909CV allows:

• OE-level ECU programming and updates
• Component adaptation and customization
• Drivability, power, and fuel efficiency improvements

Note: Programming & coding functions vary by vehicle. Contact [email protected] to verify compatibility.

39+ Services & 25+ Adaptation Functions

• Oil Reset, VGT Learning, Injector Coding, SAS Calibration
• Throttle Relearn, Cylinder Balance, Transmission Adaptation
• Fuel Pressure, Rack Sensor, and Boost Calibration

Bi-Directional Control & 3000+ Active Tests

Autel MS909CV enables real-time system testing such as:

• Fuel pump control
• A/C clutch cycling
• Window/mirror operation testing

Flexible VIN, Plate, & Engine Navigation

Tailored for commercial vehicles with varied powertrain configurations, the scanner supports:

• Auto VIN scanning
• License plate scan
• Navigation by brand or engine system

Vehicle Coverage & Support

• 80+ brands including Freightliner, Kenworth, International, Volvo, Cummins
• Light-duty, medium-duty, and heavy-duty trucks
• Gasoline and diesel commercial vehicles

Includes 1-Year warranty, 1-Year free software updates, and lifetime tech support. For pre-sale questions or compatibility, contact [email protected].

Product Specifications

• Model Number: US-Autel MaxiSYS MS909CV
• Part Number: Autel MaxiIM IM508
• EAN:
