Autel XP400 PRO – Bi-Directional Key & IMMO Chip Programmer for IM508/IM608 (2025)

Brand: Autel
Model: XP400 PRO - MBDH
Part Number: XP400 PRO - MBDH
EAN: 0792499188917
Package Dimensions: 13.0 x 10.1 x 4.0 inches

XP400 PRO – Advanced All-in-One Key & IMMO Programmer

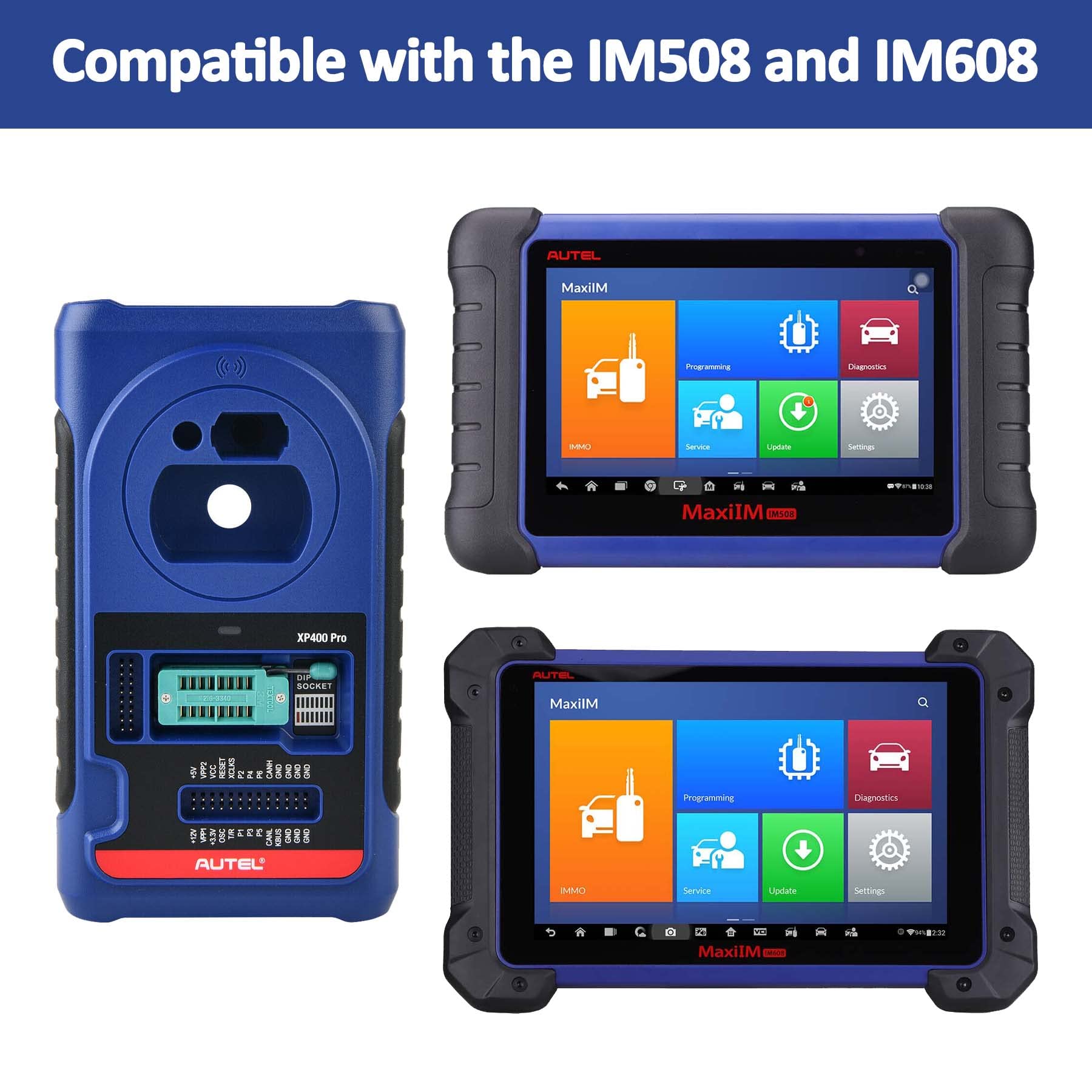

The Autel XP400 PRO is a bi-directional key fob and chip programming tool built for professional automotive locksmiths and technicians. Designed to work with the Autel IM508 and IM608, it supports over 3,000 chip types, including EEPROM, engine ECUs, MCUs, and IMMO ECUs. This upgraded version of the XP400 expands coverage, adds Mercedes IR and Hyundai/KIA IC key support, and includes extended EEPROM functions for European vehicles.

Main Functions:

• Reads/Writes and Learns Keys: Full key programming capability via OBD or dump.
• Infrared Key Programming: Supports Mercedes IR key programming.
• IC Chip Keys: Compatible with newer Hyundai and KIA chip keys.
• EEPROM Data Functions: For European vehicles, including BMW, Benz, Audi, and more.

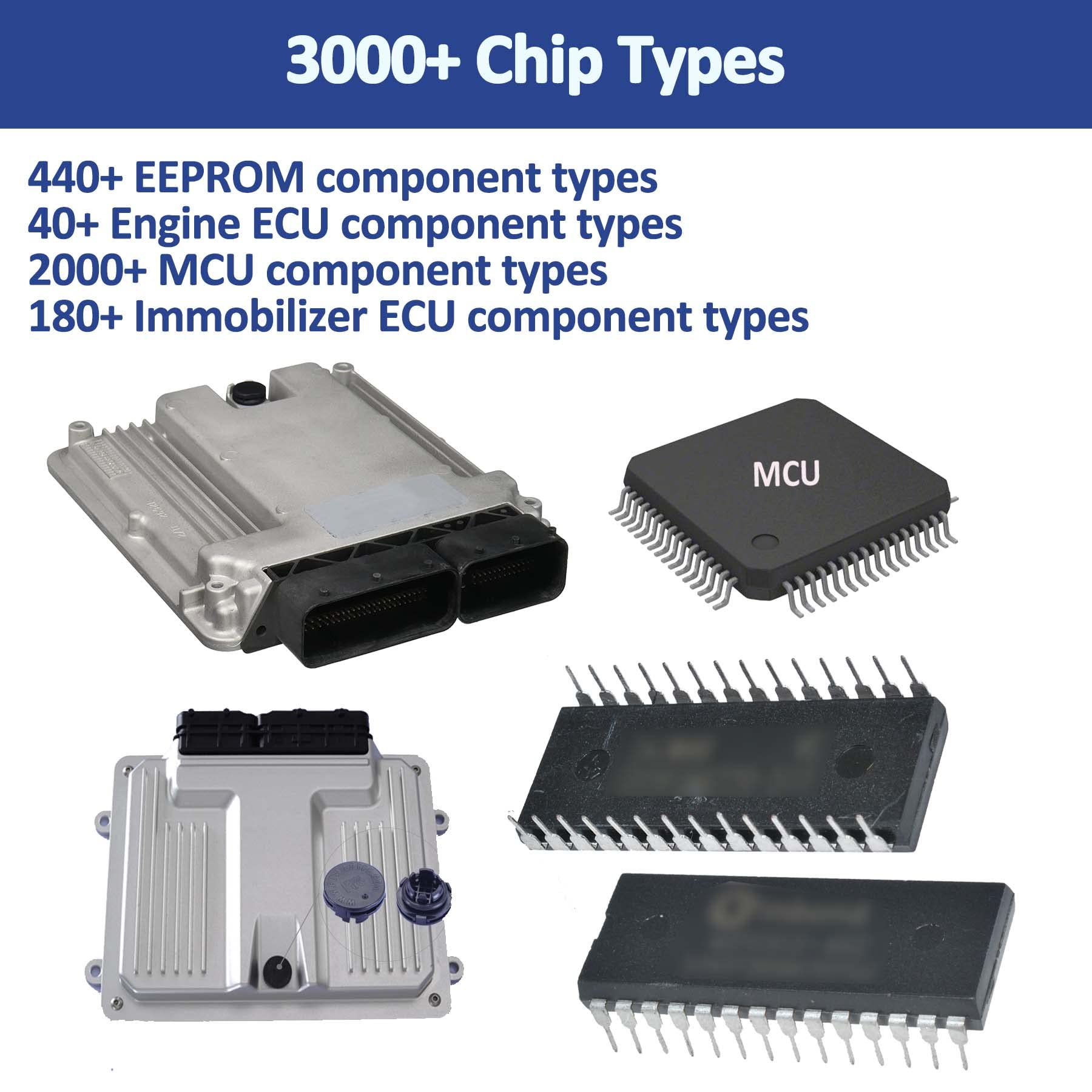

• Data Read/Write: Over 3,000 chip types including:
  • 440+ EEPROM types
  • 40+ Engine ECU types
  • 2000+ MCU types
  • 180+ Immobilizer ECU types
• Remote Frequency Detection
• Free Lifetime Software Updates

Why You Need XP400 PRO Immobilizer Programmer:

• Upgraded from XP400
• Advanced IMMO functions for BMW, Benz, Audi
• Expanded EEPROM capabilities for more chip/component access
• Remote control frequency detection
• Additional adapters available

Advanced Key Programming Vehicle Coverage (when combined with IM508 or IM608):

• Benz: One-tap key programming via OBD; All Key Lost & Add Key (CAN-Line/K-Line)
• BMW: Supports EWS3/4, CAS1–4, FEM/BDC; All Key Lost & Add Key
• Volkswagen/Audi: Online key programming for 2013–2020 models
• GM: Read IMMO password, All Key Lost & Add Key (up to 2020)
• Ford: All Key Lost & Add Key (no PIN needed, up to 2020)
• Mazda, FCA, Renault: Add Key/All Key Lost with no PIN (up to 2020)
• Land Rover/Jaguar: Key programming up to 2019
• Volvo: Smart/Blade/Fobik key learning via dump (up to 2018)

Powerful IMMO Functions:

1. Auto-detect make/model/year/system
2. Read PIN (All Key Lost)
3. Key Learning
4. IMMO ECU Reset/Adaptation
5. IMMO ECU Refresh/Coding
6. Remote Learning
7. Key Learning for Audi Q5/A4/A5 2015–2017
8. VW MQB Key Learning
9. BMW FEM/BDC Key Learning
10. BMW CAS4 Key Learning
11. Benz Key Learning
12. Land Rover & Jaguar Key via Dump (2015–2018)
13. Smart key & knob-style key learning for Volvo

Ports & Components:

• USB Port: Provides data connection and 5V power
• DC Port: 12V DC power supply
• DB 26-Pin Port: Connects Mercedes IR collector, ECU, MCU, and MC9S12 cables
• Cross Signal Pins: MCU spare cable or DIY interface
• Vehicle Key Slot, Transponder Slot, Infrared Key Slot, EEPROM Slot
• Status LED: Indicates operating status

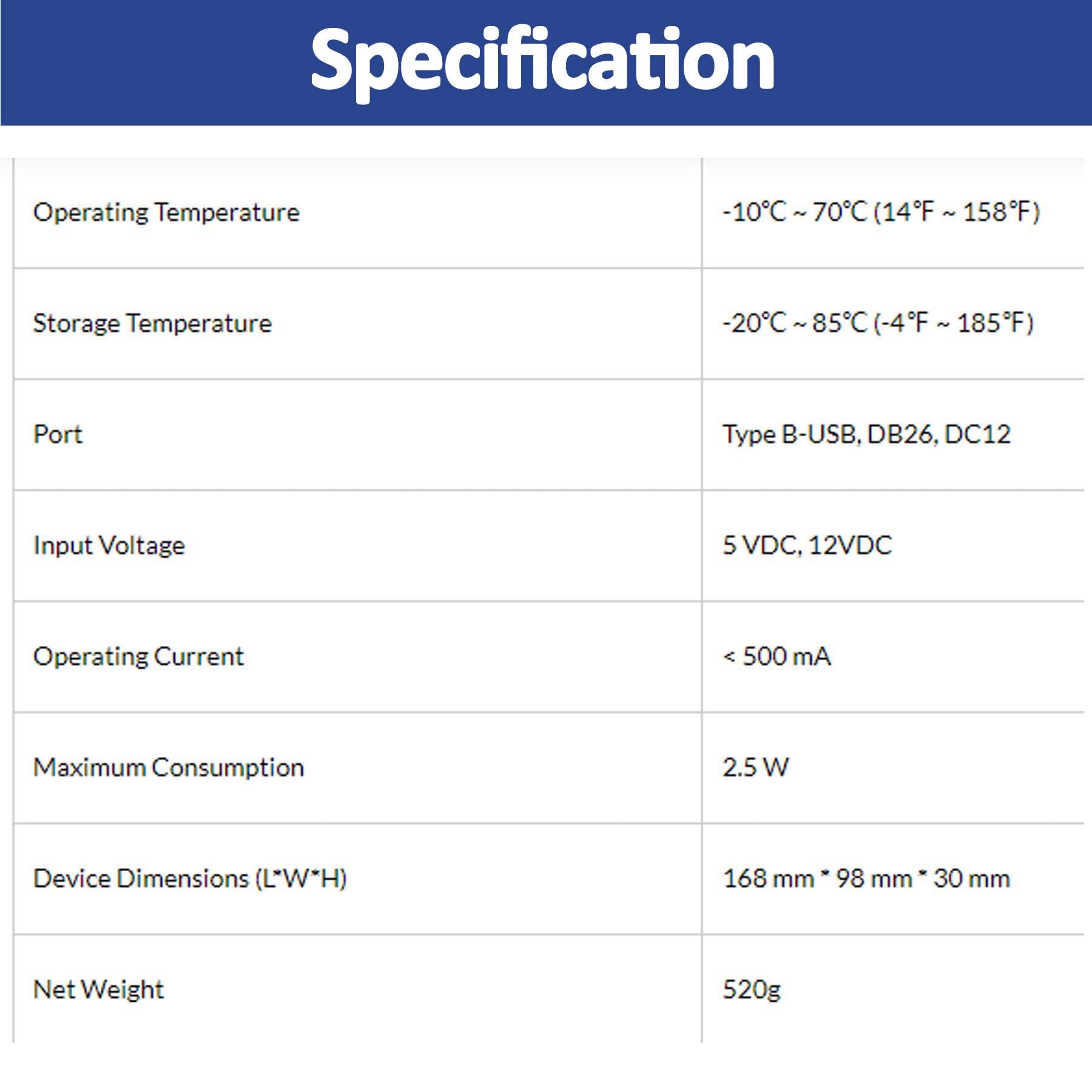

Specifications:

• Operating Temperature: -10℃ ~ 70℃ (14℉ ~ 158℉)
• Storage Temperature: -20℃ ~ 85℃ (-4℉ ~ 185℉)
• Input Voltage: 5V DC / 12V DC
• Current: <500 mA
• Max Power Consumption: 2.5W

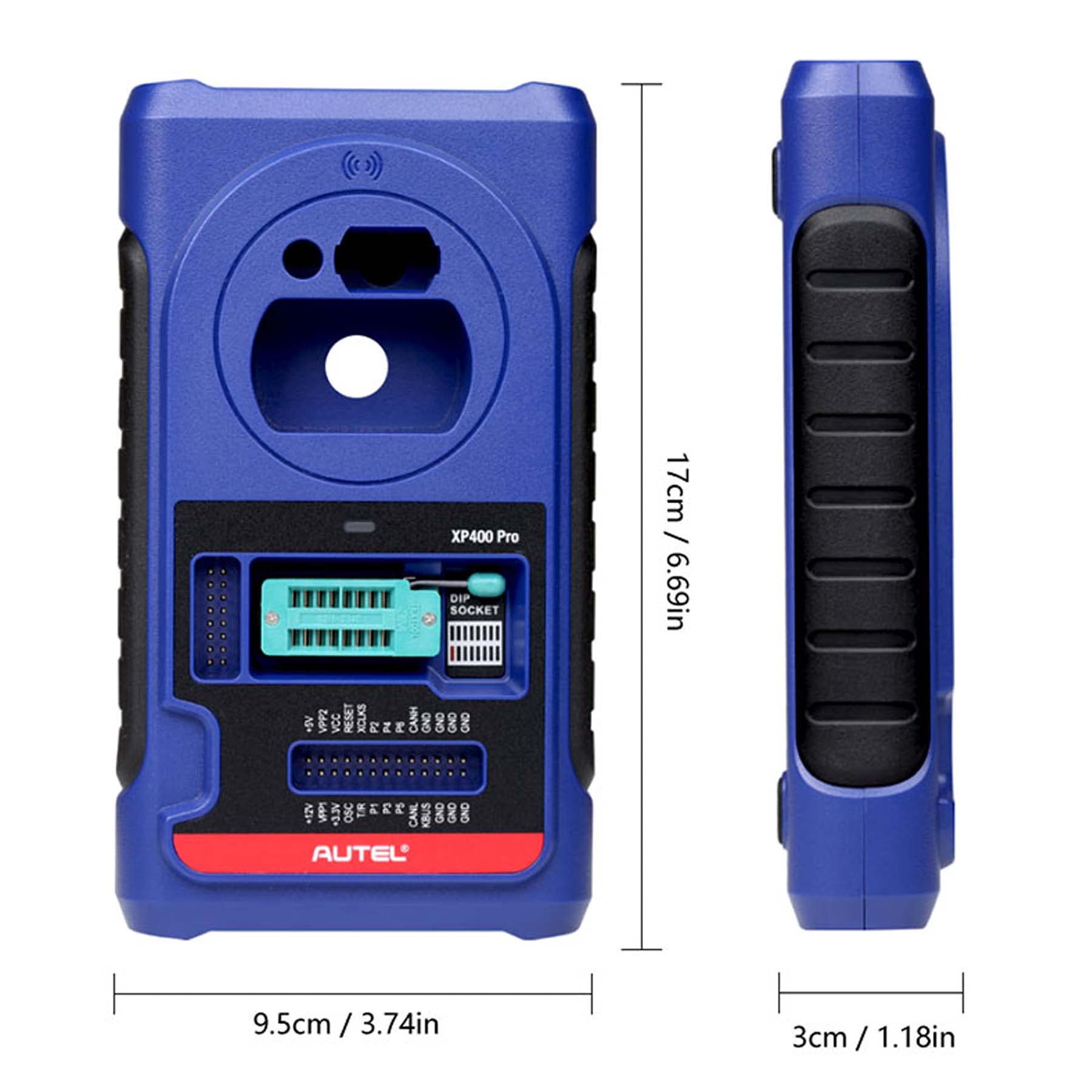

• Dimensions: 168 mm x 98 mm x 30 mm
• Net Weight: 520 g

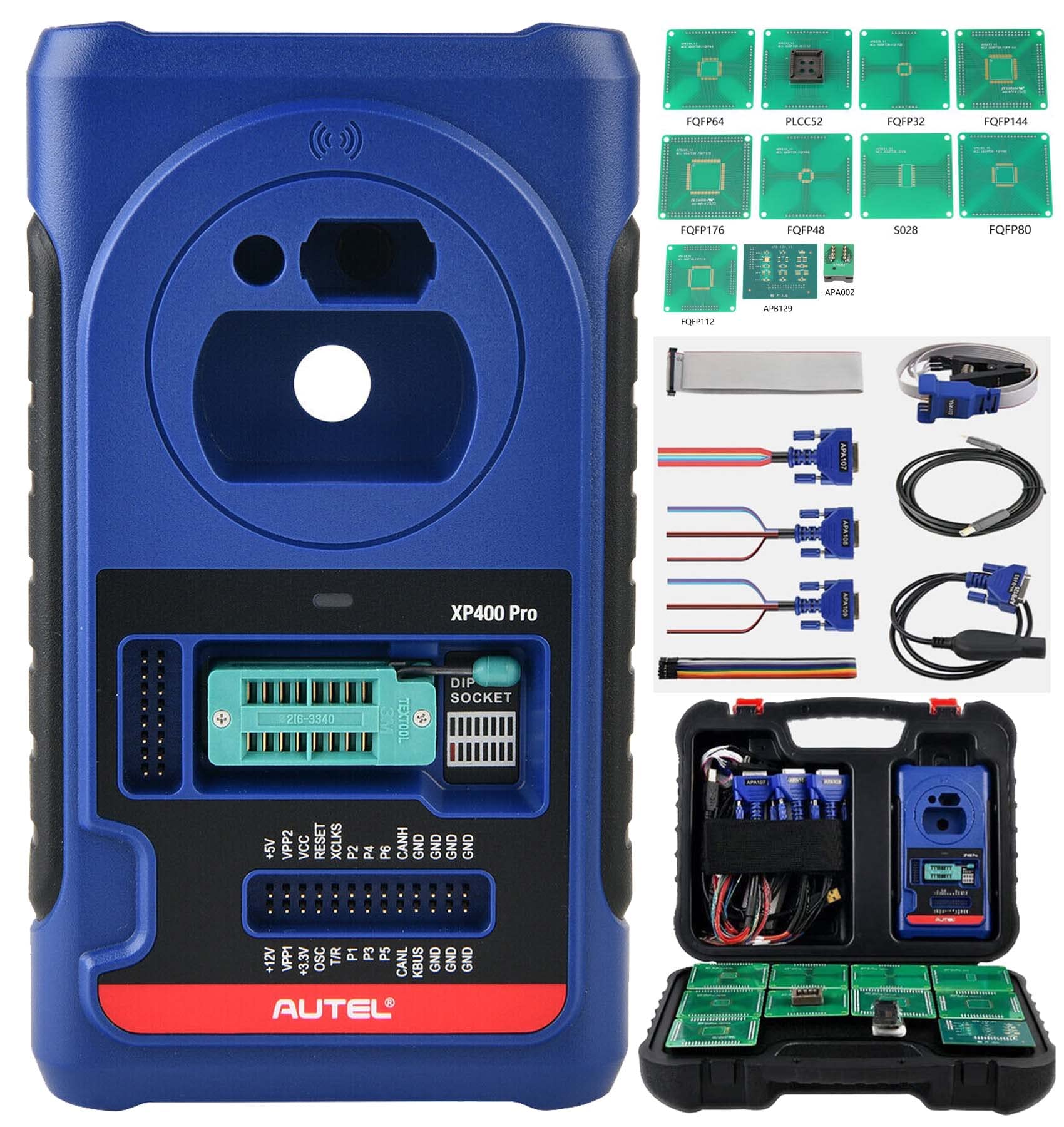

What’s in the Box:

• Autel XP400 PRO Programmer
• User Manual (digital available upon request)
• Protective Case
