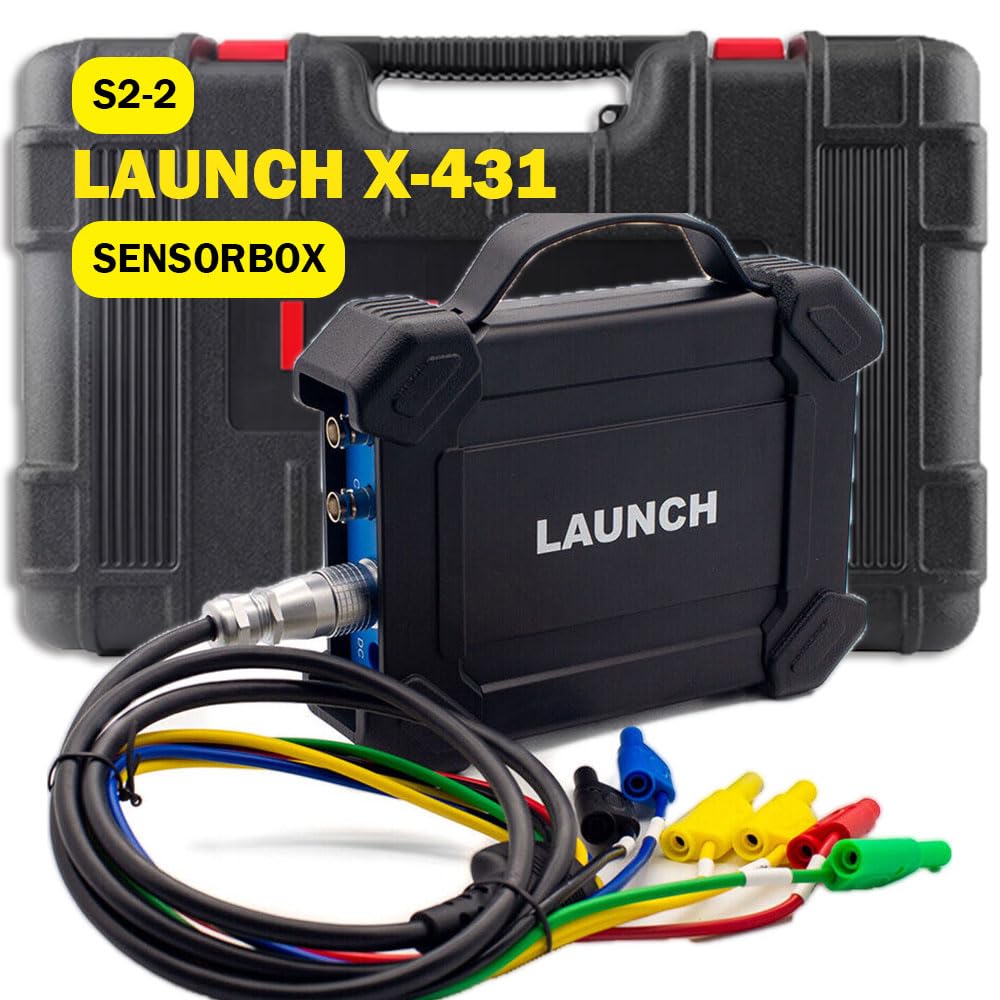

LAUNCH X431 S2-2 Sensorbox – 2-Channel Sensor Simulator & Diagnostic Tester

Advanced Sensor Simulation & Multimeter Tool for ECU Diagnostics

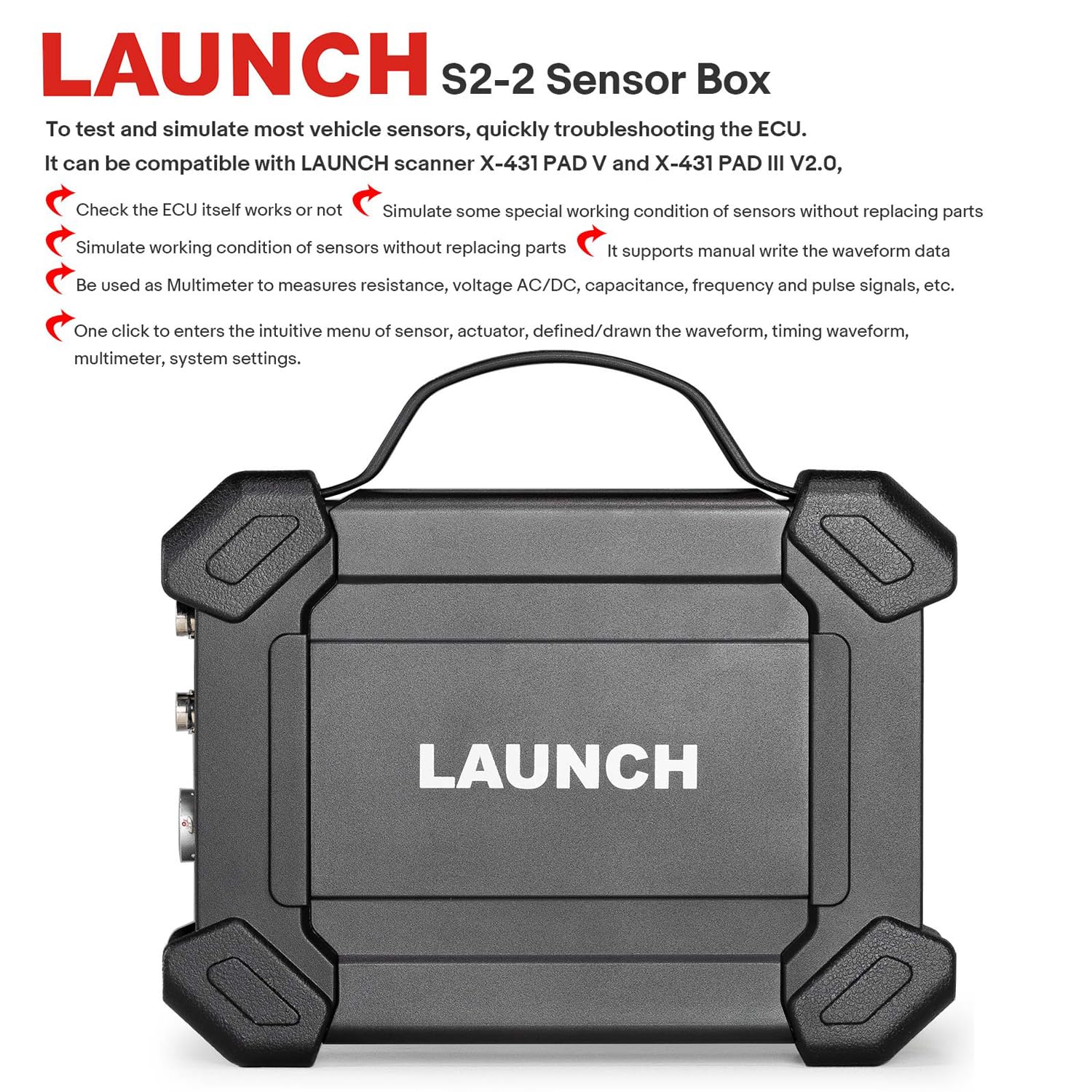

The LAUNCH X431 S2-2 Sensorbox is a professional 2-channel sensor simulator and tester designed to streamline sensor-related diagnostics in modern vehicles. Ideal for workshops and technicians, this tool helps test and simulate vehicle sensors and actuators for quick and accurate ECU troubleshooting. Compatible with LAUNCH diagnostic tablets including X431 PRO ELITE, X431 Pad II AE, X431 Turbo, PAD V, and more.

Key Features

✅ Versatile Sensor Simulation & Testing

• Simulates input signals to ECUs for quick issue detection
• Sensor and actuator testing to identify malfunctioning components
• Manual waveform data input and customization

✅ Built-In Multimeter Functions

• Measure AC/DC voltage (0–700V), resistance (0–40MΩ), capacitance (up to 100μF), frequency, and pulse signals
• Continuity detection with audible feedback

✅ Predefined & Custom Waveform Generator

• 9 built-in waveform types: sine, square, triangle, etc.
• Create hand-drawn waveforms with up to 300 data points
• Adjust duty cycle, amplitude, frequency, phase, and offset

✅ Sensorbox Operating Modes

• Sensor Mode: Simulates sensor input signals
• Actuator Mode: Simulates ECU output signals
• Multimeter Mode: Full-function multimeter testing

Specifications

• Channels: 2
• Voltage Simulation Range: 0~20V
• Max Output Current: 20mA (sensor), 2A (external actuator)
• Signal Frequency: Up to 15KHz
• Duty Cycle: 0–100%

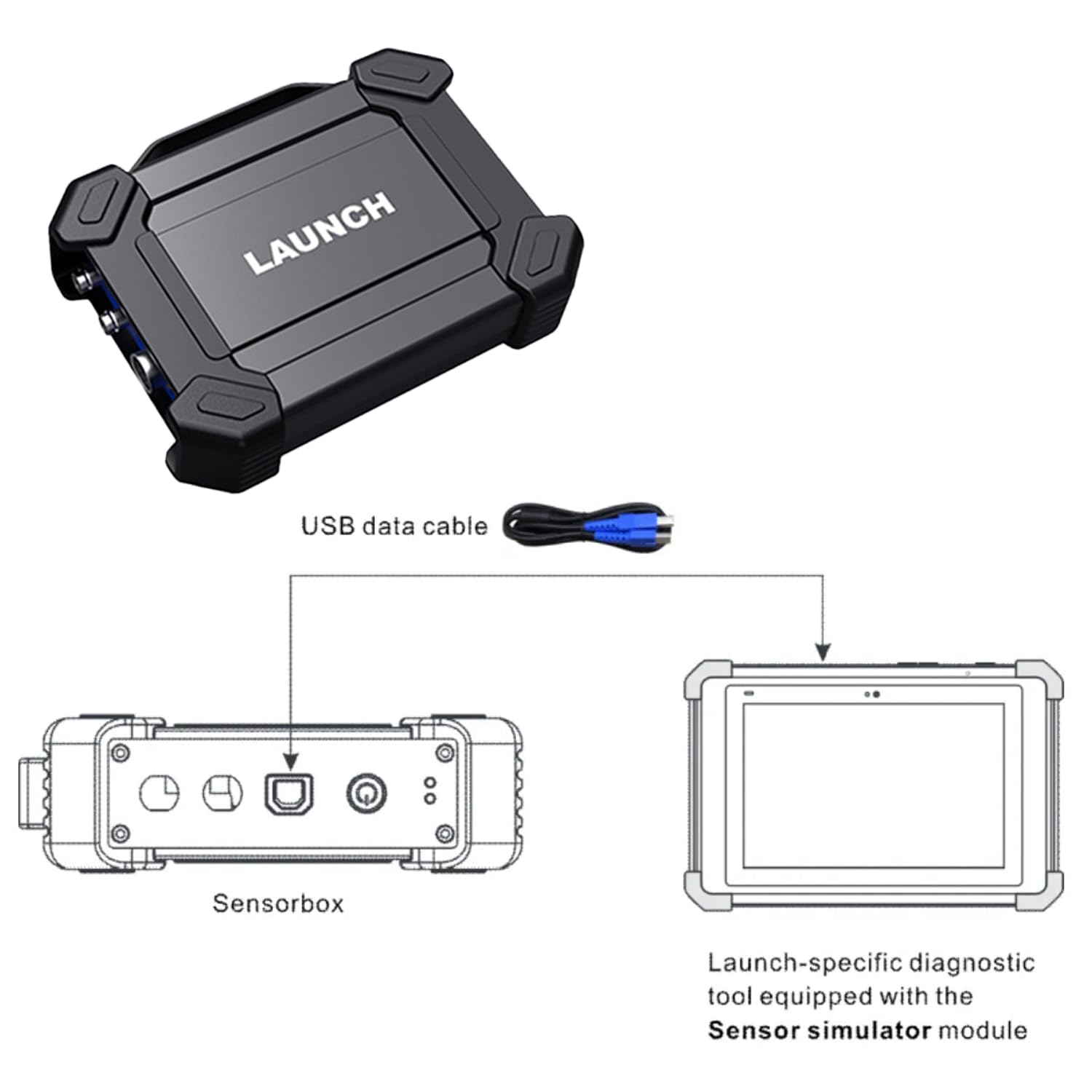

• Power Supply: USB 2.0 Type-B / Battery
• Operating Temp: 0°C–50°C
• Certifications: CE, FCC, RoHS

Compatibility

Works with LAUNCH diagnostic tools: X431 PRO ELITE, X431 Throttle, X431 Pad II AE, X431 Torque, X431 Pro3S+, PAD V, PAD 7, IMMO Elite, IMMO PLUS, and more.

Why Choose LAUNCH S2-2 Sensorbox?

Whether you're a seasoned technician or an automotive enthusiast, this compact yet powerful tool provides unmatched versatility for diagnosing ECU and sensor issues. It eliminates guesswork, saves repair time, and ensures precise diagnostics.
